Asha 202 Insert Sim Problem Solution

This solution covers for hardware level of repair for Nokia 202 Sim Not Working problem and Also you will find 202 Sim Track Ways And Jumper information in the diagrams further in this article.
Just see the solution preview below for it shows which track to be check and make jumper.

Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.

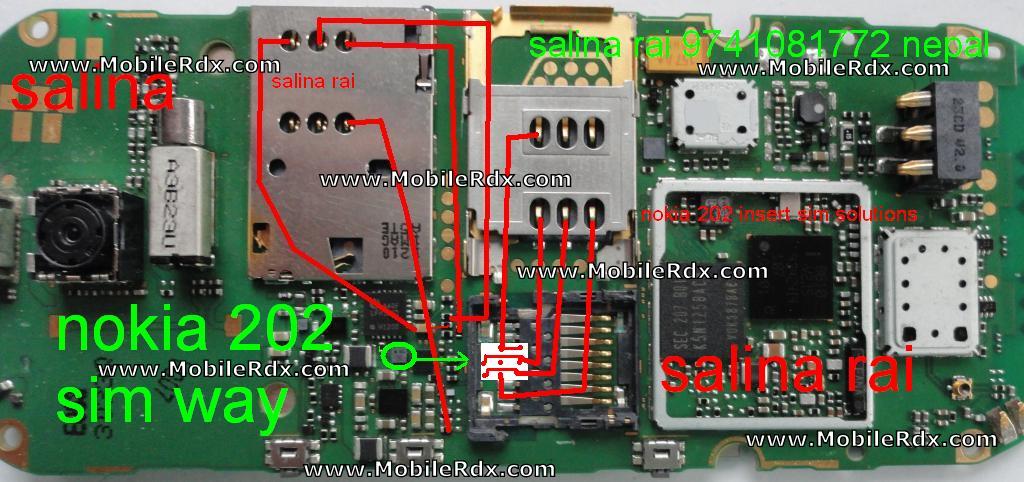

The solution below shows the Nokia 202 pin connector connection line paths through to a particular components that holds the SIM card to work. Just refer to the solution to trace each corresponding pin connection for a quick and easy troubleshooting or repair.
nokia 202 sim ic jumper
nokia 202 sim track ways
nokia 202 insert sim solution
nokia 202 insert sim problem
You may first check the SIM supply voltage (VSIM) pin and ground pins, then the SIM Clock pin. The SIM Data and the SIM Reset were directly connected to the PEARL IC, tracing this line paths may need to remove the PEARL IC first.You may also try to replace the capacitors and resistors being connected to it.
Note: Please note that even though every solution posted on out website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You 🙂
www.MobileRdx.com
