Nokia Lumia 710 Charging (+) (-) Short Solution



In Nokia Lumia 710 if it is not charging ok and you have not charging problem in Nokia 710 then you can solve this problem with help of diagram bellow. in this diagram all charging links are identified so that you can understand which parts are used in charging function in nokia 710.

Just see the solution preview below for it shows which track to be check and make jumper.

Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.

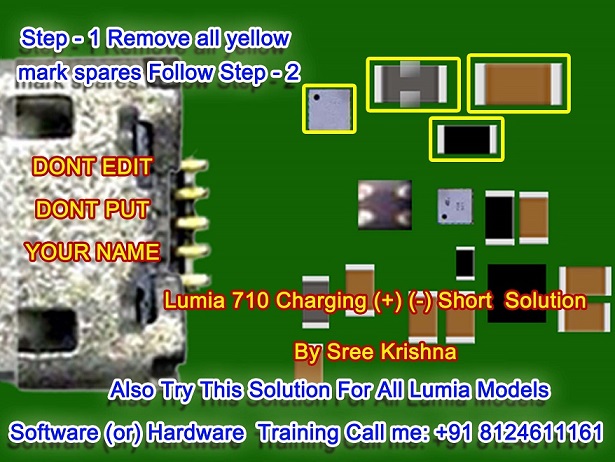

Step-1 Remove All Yellow Marked Parts

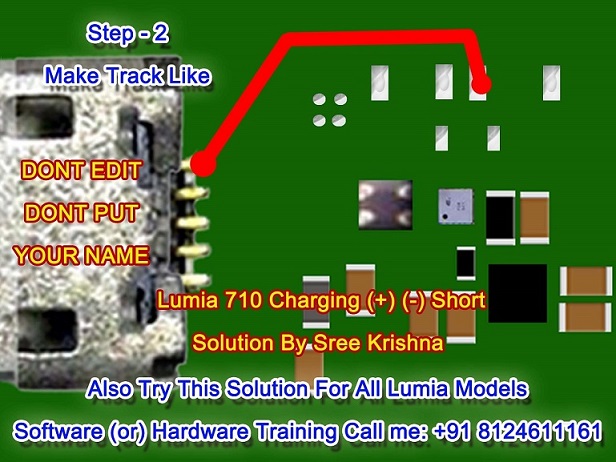

 Step-2 Make Red Jumper
nokia 710 charging short solution
nokia 710 charging problem

So one print is ground it is identified in diagram with red color and red color is a positive print and you can check all track with meter and if any of them is broken you can apply jumper as defined in repairing diagram.mostly if we plug in charger and it does not show any thing it can be fault of charging base or may be fault of broken link. so check charging base also.

If it shows not charging indication or a message charger not supported then it can be fault of charging ic or may be due to 47k resistance.

Note: Please note that even though every solution posted on out website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You..
