Samsung Gt-i9200, i9205 Dislpay Light Solution Ways

Samsung Gt-i9200, i9205 Lcd Display Light Not Working Solution
Samsung i9200, i9205 No Light On Lcd

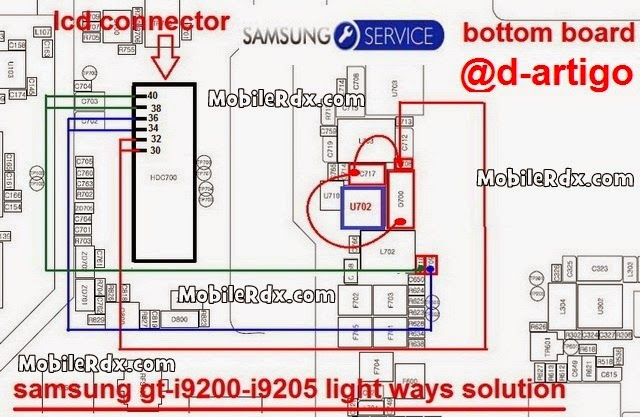

gt i9200, i9205 Display Light Track Jumper

Display light is also referred to as backlight, and is known to be one of the rarest problems that occur with Samsung Galaxy Mega.

In the following lines you will get to know the method to resolve Samsung Galaxy Mega Display Light problem:

Problem
Display light / Backlight not working.

Manual Solution
Check your phone brightness settings. (This is the only manual solution for this problem)

Hardware Solution

The very first thing that you need to do is to re-solder all the pins of Note Display on-board connector and check LCD screen.
If the above step fails then check it with a good working LCD screen.
Now check both capacitors (Capacitor 1 and Capacitor 2) with their side’s first pin of display on-board connector. If any of them is faulty, replace them.
Now Check Continuity between +ve terminal of the battery with display IC’s first pin.
Check all the display IC capacitors for continuity, if any of them is faulty then change it.
If the above step fails then gently heat display IC and check, if it still fails then change it.

Note: Every repairing solution posted here is tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.
