Samsung GT-N7100 Galaxy Note 2 Power On Off Button Ways

Here’s the Samsung Galaxy Note 2 GT-N7100 solution for not working Power/End key problem. This solution may help fix if the phone shows charging indication or charging icon when the battery charger is plug-in but failed or unable to turn it ON.

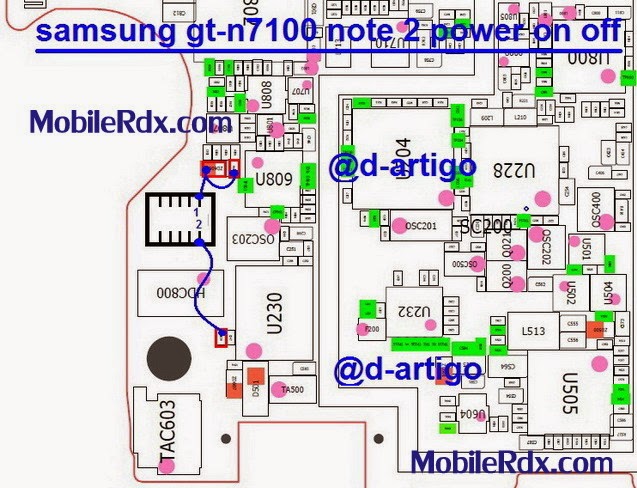

Samsung GT-N7100 Power On Off Key Jumper,Track,Ways

Samsung Galaxy Note 2 Not Powering on
In Samsung GT-N7100 the power ON-OFF key aside from it is on the keypad flex matrix it is also connected to the keypad filter IC. The solution below shows the connection line paths of the power key, this is useful without changing the filter IC and this can be used by bypassing the power key connection from the filter IC.

Just refer to given solution below and trace the said power key line paths.

Just manage to apply a jumper wire on a spots where the said Samsung GT-N7100 power key connection. This may help without compromising to change the filter IC and or the keypad flex matrix.

Note: we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You 🙂
