Nokia 208 Display Lcd Light Problem Solution Ways

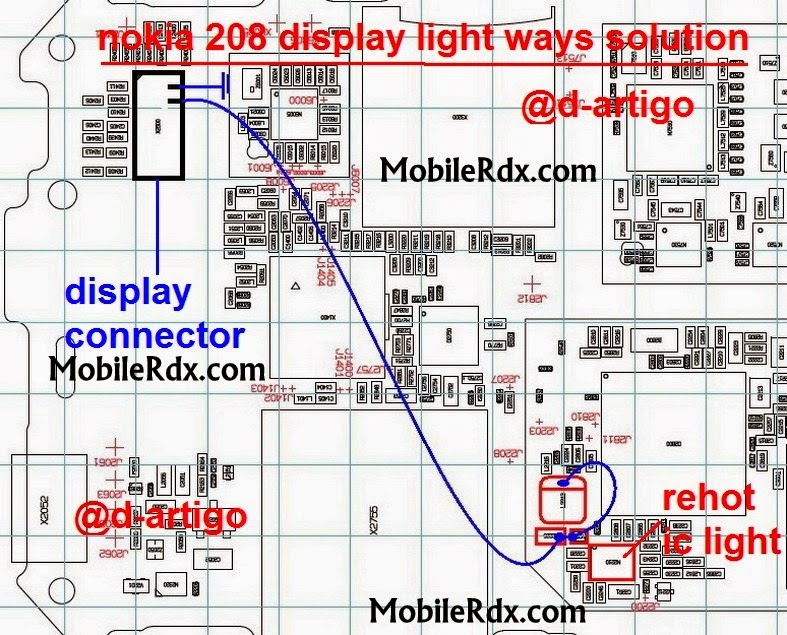

This solution may help fix Nokia 208 that shows a dark display over LCD screen.This problem is a failure of the LCD’s white backlight LED bulb. To quickly fix the problem you may check the highlighted components showed below. Those are the key components that holds for the LCD’s backlight LED.

Nokia 208 Display Light Solution
Nokia 208 Display Lcd Light Ways Jumper, Tracks, Path
Repair Nokia 208 Light Problem
Nokia 208 Display Light Not Working Solution Jumper

Here’s some hints on how to troubleshoot the “Nokia 208 LCD display backlight not working problem”.
” Note: ensure that the Lcd is okay or try replacing it before proceeding”
1. Check the LCD pin connector for possible damaged, resolder if necessary.
2. Trace each of the LED + (positive and LED – (negative connection line paths down to the resistors where it is being connected.
3. Check the connected resistor, replace if found damaged.
4. Check the 3.7 volts battery voltage (VBAT) across the inductor coil, check also the coil for possible open circuit.
5. If the voltage reading is okay and the coil is good. Replace the the LED driver IC.
