Samsung GT-S5282 Charging Problem Repair Ways Solution

Samsung S5282 Charging Jumper Ways
Samsung GT-S5282 Usb Pin Connecter Track Solution
Samsung s5282 Not Charging Problem

Samsung GT-S5282 is its charging problem, and this is mainly because if your charging connector is giving you problems then sooner or later your phone is going to be out of charge hence rendering you completely helpless, therefore it is highly recommended that one should get it fixed as soon as one notices any such charging issues.

In the following lines you will get to know about some of the charging problems related to Samsung GT-S5282  along with their solution.

Problem
Samsung S5282  is not charging at all.
Phone charges really very slow.
Samsung S5282  heats up during charging.
Phone does not give any response when charger is connected.

If the charging is slow then all you have to do is to check with any other Nokia Lumia 510 charger, but you have to make sure that the charger is original, as slow charging issues almost always occurs with phones using 3rd party chargers.

Clean battery charging pins and check.
Clean charging connector pins.

Hardware Solution Samsung GT-S5282 Charging Problem

The very first thing that you need to do is to check voltage at the testing point 1 (as mentioned above in Figure). The voltage should be around 4.9V to 5V. other testing points are for USB connector.

After removing body of your Samsung GT-S5282 , the very first thing that you need to do is to re-solder first pin of charging connector and check.

Check the fuse and diode for possible open and short circuit.

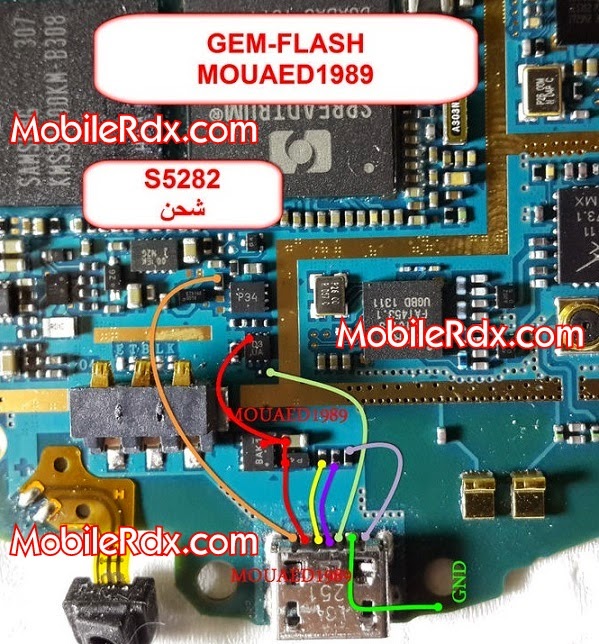

If same problem Check Charging connector ways marked in below image.

Samsung S5282  Charging Problem ways Solution

If any Charging ways is missing then make a jumper with the help of Jumper Wire.

If all Charging track ways is working means then replace Charging Connector. Your problem will solved.

Note: Please note that even though every solution posted on our website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
