LG G2 D802 Power Switch Button Ways Solution

LG G2 D802 Power Button Ways Problem On-Off Switch Jumper

One of the most common issues that are found in LG G2 D802 is its power button problem. The reason for this problem could be anything. This could either be due to water damage or just the basic wear and tear. In the case of basic wear and tear, power button losses its Springiness hence you need to press it harder than usual for it to make it work for you or it could either fail completely.

So if your LG G2 power button is not working to repair it you just need to replace it with a new one. If the prints of the button are damaged then you are going to have to make the jumpers as shown in the diagram.

Hardware Solution for LG G2 D802 On/Off switch
The first thing you need to test is there any water damage or dust.
if any thing just clean it with the help of IPA or any cleaning liquid.

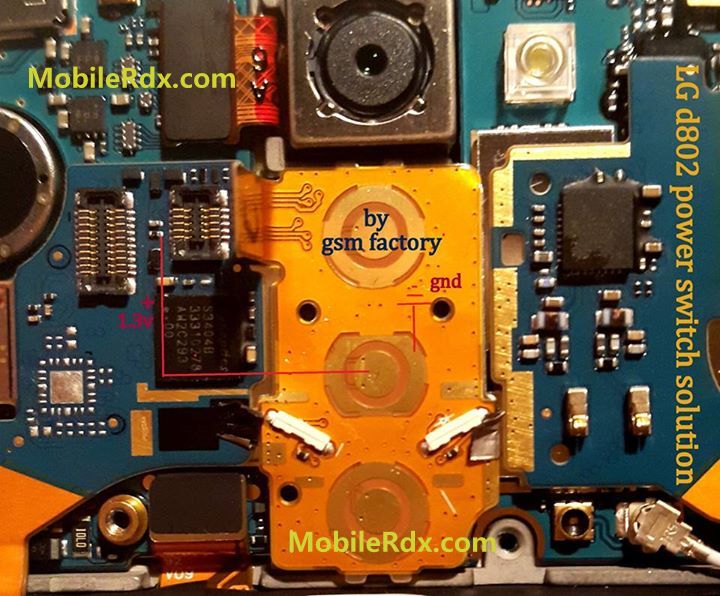

If same problem then check the Track ways of LG G2 D802 power on/off switch. Marked in below image.
If any of the track is missing make a jumper with the help of jumper wire.

LG G2 D802 Power Switch Button Ways Jumper


Solution Provided By GSM factory

If you have further Questions please leave a comment.

Note: Please note that even though every solution posted on our website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
