Samsung Galaxy S6 G920F Microphone Ways Mic Jumper

Samsung Galaxy S6 G920F Microphone Ways Mic Jumper
Samsung SM-G920F Mic Solution Mic Jumper Problem Ways
Here’s the solution that might possibly help solve Samsung Galaxy S6 G920F mouthpiece microphone failure, a problem that no audio sounds can be heard from the other receiving device during a call is created.

Now remember before making any of these jumpers please make sure that a faulty microphone is not causing this problem. Only make these jumpers if the microphone’s placing prints are damaged. Second thing you don’t need to make all the jumpers as shown here. I have marked all the ways just in case you have damaged the next points too.

Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.

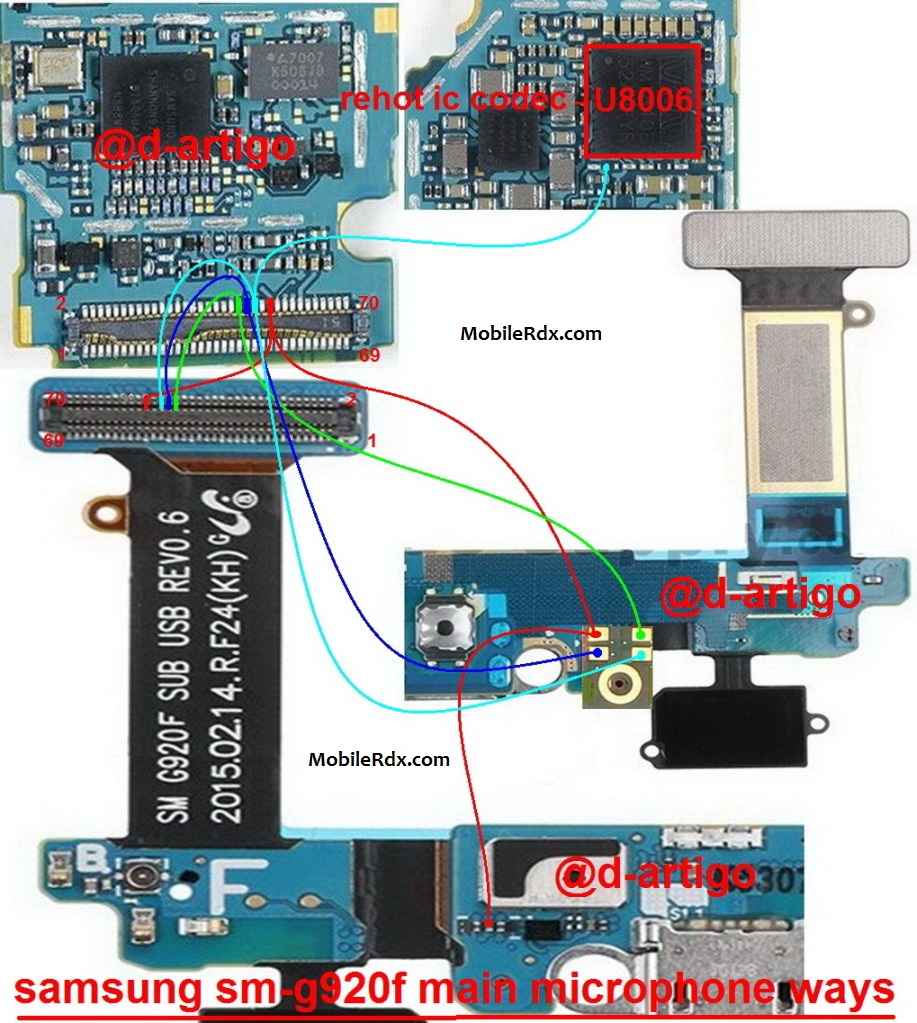

Samsung Galaxy S6 G920F Mic Solution Jumper Problem Ways

Samsung Galaxy S6 G920F Microphone Ways Mic Jumper

You may check and replace all the corresponding filter resistors and capacitors. If all the resistors had been check and or already been replaced but doesn’t fix the problem, check the MIC Bias Voltage, if the voltage is missing,. The possible faulty is the IC U8006, reworking it might only fix the problem.

If you have further questions please don’t hesitate to leave a comment.

Note: Every repairing solution posted here is tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.

Samsung Galaxy S6 SM-G920F Mic Solution Jumper Problem Ways Mic Not Working Microphone
Samsung SM-G920F,Mic,Microphone,Mic Problem,Mic Solution,Mic Jumpers,Mic Ways
