Samsung Galaxy S5 G900H Battery Connector Jumper Ways

Samsung SM-G900H  Battery Connecter Ways Point Jumper Solution
Nokia Lumia 610 battery Low then Shutdown or restart set dead fault caused by either a faulty resistor and capacitor. Here we wants to share the experience how to repair this kind of damage.

Damage to the battery Samsung Galaxy S5 G900H could be in the causes for the phone does get wet, padded seat battery connector corroded and rusted breaking lines.

Here are tips on battery connector lines, check the track as in the picture below, if there is a path-breaking or not, if there is a path-breaking try doing jumpers carefully to avoid short-circuit condition of the phone.

Hardware Solution:
Samsung Galaxy S5 G900H Battery Connector Jumper Ways


“any damage resulting from the tips is not our responsibility”

Diagnostics:
If Nokia 110 is not getting power ON, Replace the battery and try to power it ON. Plug in charging pin into jack and try to make it charge. Check batter terminal’s +v and -V points with electronics meter.

Solution:
Dis assemble the phone Samsung Galaxy S5 SM-G900H  and check battery connectors if these are lose or not fix. Then check the whole mother board for water and rust damages, Carbon or broken parts.
If find some rust or carbon make it clean with electronics cleaner and apply hot air with heat gun to make it dry.

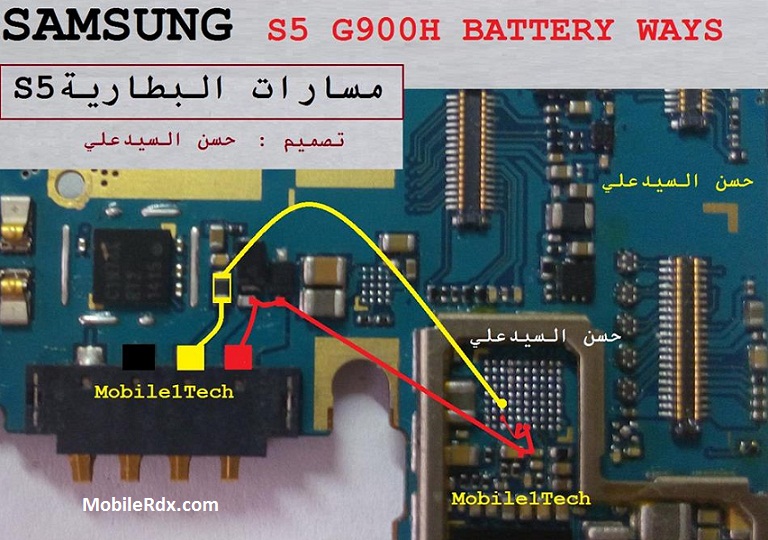

Find out these parts that are identified in above diagram and make check for volts. If find some broken parts or tracks are missing then apply jumpers as given in above diagrams.
Samsung SM-G900H,Battery Terminal,Battery Points,Battery Jack Problem,Battery Terminal Solution,Battery Terminal Jumpers,Battery Power Ways
