Lg T375 Power On-Off Key Ways

This solution shows the connection line path of the power ON and OFF button switch of Lg T375. This may help also for lifted power switch button on the PCB board and can be used to reconnect it again.
Refer to the solution below to determine its connection line paths and connected components. In some cases like power switch terminal solder pads is lifted or the capacitor and resistor already been missing, you may need to use a microscope and sharp blade knife, then dig out the PCB layer where the capacitor or the resistor conductive connection and then manage to establish a solder connection on that spots.
Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.

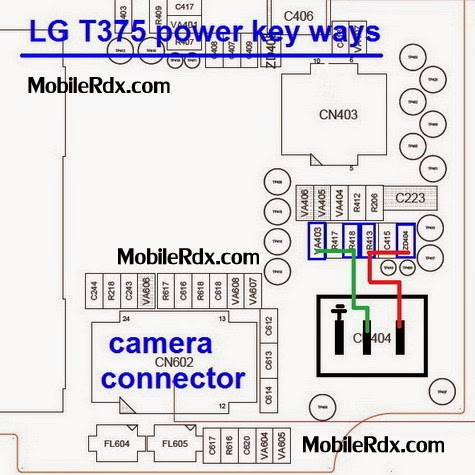

Lg T375 Power Switch Jumper

Lg T375 On-Off Button Ways

Note: Every repairing solution posted here is tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.
