Samsung Galaxy mini 2 S6500 Battery Connector Ways

This post is for Samsung Galaxy mini 2 S6500 Battery Connector Ways Jumper points. If your phone’s battery terminal points are broken use the diagram below to solve this problem.

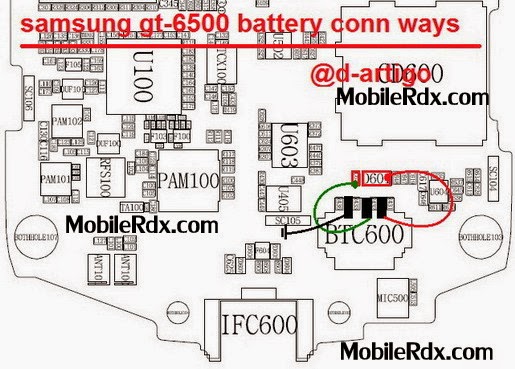

Samsung Gt-S6500 Battery Connector Jumper
Samsung s6500 bsi Line Ways
Samsung Gt-S6500 Battery, Track, Ways Path, Jumpers

I have marked all three battery terminal connector ways with different colors to make things more clear. The first leg is Positive the second leg is Negative and finally the third leg is BSI. Just make the jumpers to their first contact points, rest of the ways are just in case that your first points are also broken.

Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.

Samsung Galaxy mini 2 S6500 Battery Connecter Ways Jumper

If you have further Questions please don’t hesitate to leave a comment.

Note: Every diagram we post on mobilerdx.com is tested by one or more members of our team. Still Use them at Your Own Risk we are not responsible if these solutions may cause any harm to your phone.
