Lenovo A2010 Usb Ways Charging Jumper Solution

Lenovo A2010 Usb Ways Charging Jumper Solution
Lenovo A2010,Charging,Solution,Jumper,Problem,Ways
Here is the solution for Lenovo A2010 Not Charging problem like there is No Charging indication shows on the display when the battery charger is being plug-in.
This problem is may caused by a faulty charger or a faulty components on Lenovo A2010 PCB board. This problem may sometimes happens if the device suffered wet or water damaged or just exist.

Solution
Before doing, Be sure to check the battery and charger are Exactly working condition. then verify the phone’s USB pin connector is broken or any fault.
Check the charging (+) and (-) line paths are short using multimeter, if it shows short them, remove/replace the diode, capacitors and filers. also replace the fuse. Note: use these work at your own risk.

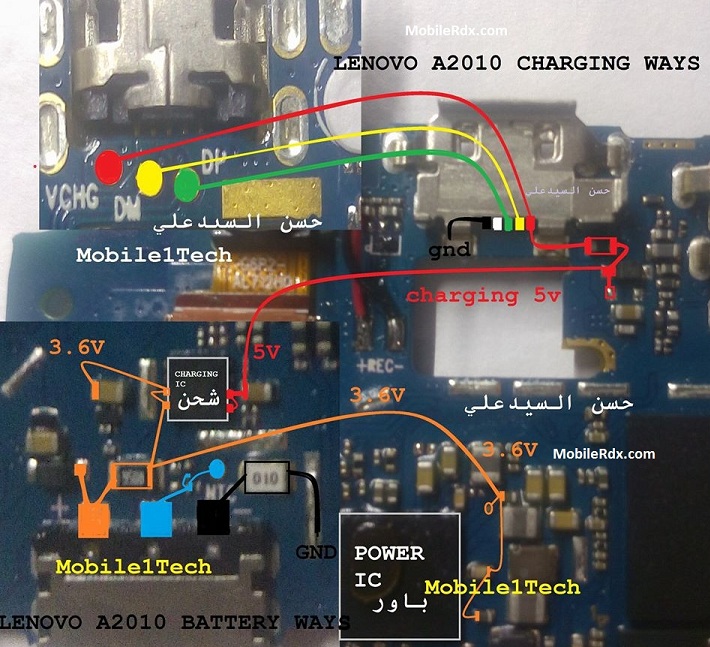

Check all the components shown on the image below.
Lenovo A2010 Usb Ways Charging Jumper Solution


If the charging is slow then all you have to do is to check with any other Samsung charger, but you have to make sure that the charger is original, as slow charging issues almost always occurs with phones using 3rd party chargers.
Clean battery charging pins and check.
Clean charging connector pins.

If you have any further Questions please leave a message or Live Chat with us.

Keep in mind:- The every solutions posted on Our website is well tested before by our specialist team, But still we do not take any responsibility for any damage it may cause to your cell phone. Use these repairing solutions at your own Risk, Thank you.
