Alcatel OneTouch Hero 8020D Battery Connector Problem Ways Jumper

Alcatel OneTouch Hero 8020D Battery Connector Ways Solution Problem Ic Jumper

Alcatel OneTouch Hero 8020D Battery Connector Problem Repairing Solutions are available in the following article.Also you will find Connector Ways and Jumpers information in the diagrams further in this article. If your cell phone is having one of these faults check these diagrams out and do the solutions step by step.

If your Alcatel 8020D Battery Connector is damaged somehow by whether mishandling or any other reason you can always replace it with a new one. But if you have damaged the battery Connector prints meaning Connection points on which the the Battery Connector is soldered to the Alcatel OneTouch Hero 8020D Battery Connector Ways PCBA motherboard no need to worry, Diagrams on the end of this article can help you.

Continue with the following repairing solutions and make the necessary jumpers to the points that have been damaged.

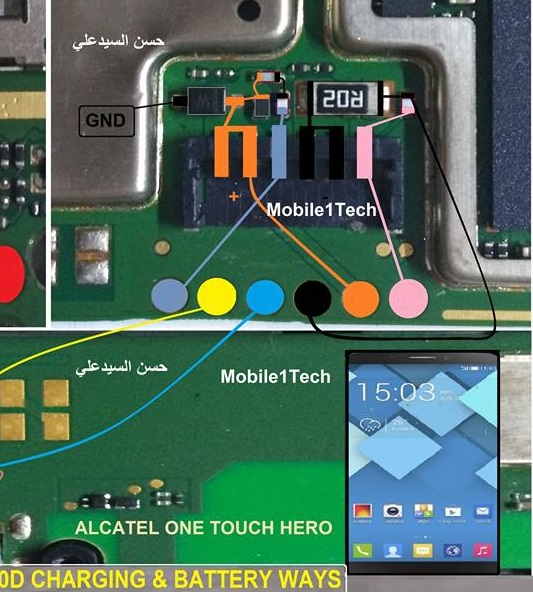

alcatel-onetouch-hero-8020d-battery-connector-problem-ways-jumper

Diagnostics:

If Alcatel 8020D is not getting power ON, Replace the battery and try to power it ON. Plug-in charging pin into jack and try to make it charge. Check batter terminal’s +v and -V points with electronics meter.

Solution:
Disassemble the phone Alcatel OneTouch Hero 8020D and check battery connectors if these are lose or not fix. Then check the whole motherboard for water and rust damages, Carbon or broken parts.

If find some rust or carbon make it clean with electronics cleaner and apply hot air with heat gun to make it dry.

Find out these parts that are identified in above diagram and make check for volts. If find some broken parts or tracks are missing then apply jumpers as given in above diagrams.

Alcatel OneTouch Hero 8020D,Battery Terminal,Battery Points,Battery Jack Problem,Battery Terminal Solution,Battery Terminal Jumpers,Battery Power Ways
