Nokia 5233 Touch Screen Problem Repair Jumper Solution

This article is for Nokia 5233 Touch Screen Problem Solution. If your phone’s touch screen stops working solutions in the diagram below can help you.
Touch screen problem in Nokia 5233 can often be caused by damaged touch screen connector so make sure that it is in good condition. Clean it and the general area around it with any cleaning substance just to make sure that moisture or carbon is not causing this problem.

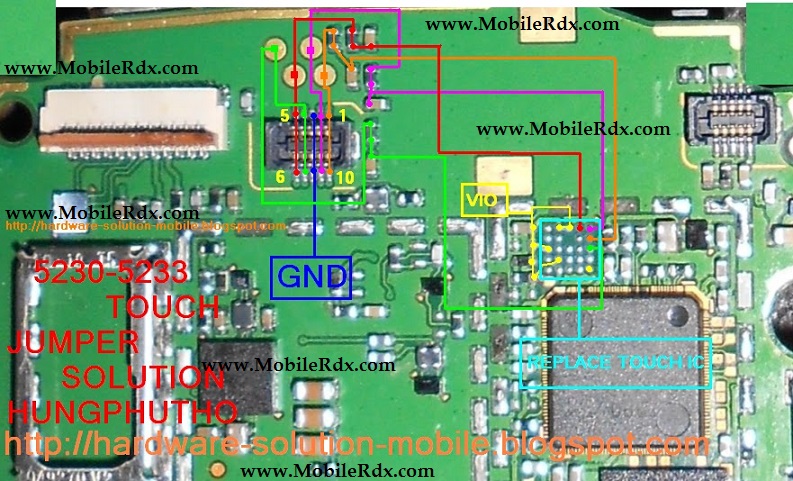

I have marked Nokia 5233 Touch Screen Connector Track Ways in the diagram below. Make the jumpers as shown in it but If you are sure that the Connector is in good shape then repair or replace the Marked IC.
Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.
Here Are Solution Please Obseve Carefully.
nokia 5233 touch screen not working problem solution 300x181
If you have further Questions please don’t hesitate to leave a comment.
Note: Every diagram we post on is tested by one or more members of our team. Still Use them at Your Own Risk we are not responsible if these solutions may cause any harm to your phone.
Read More:-  Nokia C1-00 Local Mode Test Mode Poblem Solution
