    Samsung GT-B5722 Power Button Ways Jumper

    By PrateetOctober 7, 2014
    Here’s the Samsung GT-B5722  solution for lifted and damaged ON and OFF power switch problem. This solution is helpful to reconnect the cut-off power switch line paths that resulted to “unable to turn the device power ON”.

    Samsung GT-B5722 Power key Not Working Solution
    Samsung B5722 On Off Button Ways Jumper
    Samsung GT-B5722 Power On Track Missing

    For some reason the power switch terminal solder pads may also been severely damaged and lifted by the users., In order to fix this problem we need to bond the power switch to its original position so that it won’t easily break. But the problem is, we cannot apply a solder on its terminal because the solder pads was already been lifted. To avoid hassle digging the PCB board you can refer to this solution below to locate which particular components where we can apply and mend a jumper wire to reconnect the said open line path of the power switch connection.

    Hardware Solution:

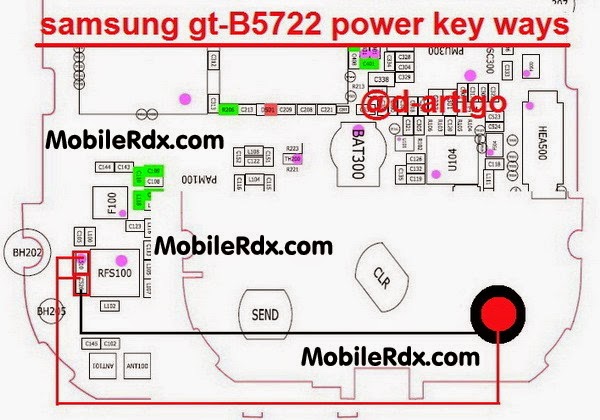

    samsung 2Bgt B5722 2Bpower 2Bbutton 2Bways

    Samsung B5722 power button On Off switch not working ways jumpers.Replace battery and check if mobile can not be switch On dis assemble the phone and check power switch button ways as given in above diagram.If any print out of these is missing apply jumpers to solve On Off Button problem.
