    Samsung

    Samsung GT-S3653 Battery Connecter Jumper Ways

    By PrateetOctober 7, 2014
    This post is for Samsung GT-S3653  Battery Connector Ways Jumper points. If your phone’s battery terminal points are broken use the diagram below to solve this problem.

    Samsung GT-S3653 Bsi Line Ways
    Samsung S3653  Battery Connecter Pin Jumper Track Pinout Ways Solution

    I have marked all three battery terminal connector ways with different colors to make things more clear. The first leg is Positive the second leg is Negative and finally the third leg is BSI. Just make the jumpers to their first contact points, rest of the ways are just in case that your first points are also broken.

    Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.

    ‘

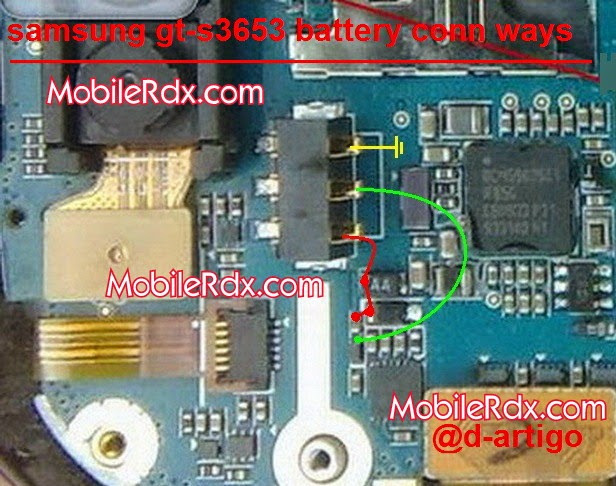

    samsung gt s3653 battery connector ways

    Samsung GT-S3653 Battery Connecter Ways Jumper

    If you have further Questions please don’t hesitate to leave a comment.

    Note: Every diagram we post on mobilerdx.com is tested by one or more members of our team. Still Use them at Your Own Risk we are not responsible if these solutions may cause any harm to your phone.
