    Samsung GT-I9200 Mic Ways Solution Microphone Jumper

    By Mobile RdxJune 4, 2015

    Samsung GT-I9200 Mic Ways Jumper Problem Solution
    Samsung Galaxy Mega 6.3 I9200 Mic Not Working Problem Repair Ways Track Path Repair SolutionHere’s the solution for Samsung I9200 when trying to fix a microphone problem issues. It’s a failure on the hardware which there is no audio sound can be heard over the receiver’s earpiece speaker.

    This solution simply shows the location of the components where you may to have a check or replace if found damaged. In Samsung GT-I9200, the cell phone microphone is installed or mounted on the bottom side of the PCB board, and also all of its corresponding circuit components such as the filter coils or surface mount inductors, chip resistors and chip capacitor were also mounted near to it.

    Samsung Galaxy Mega I9200 Mouthpiece microphone circuit components and test spots

    Samsung GT-I9200 Mic Ways Solution Problem Jumper

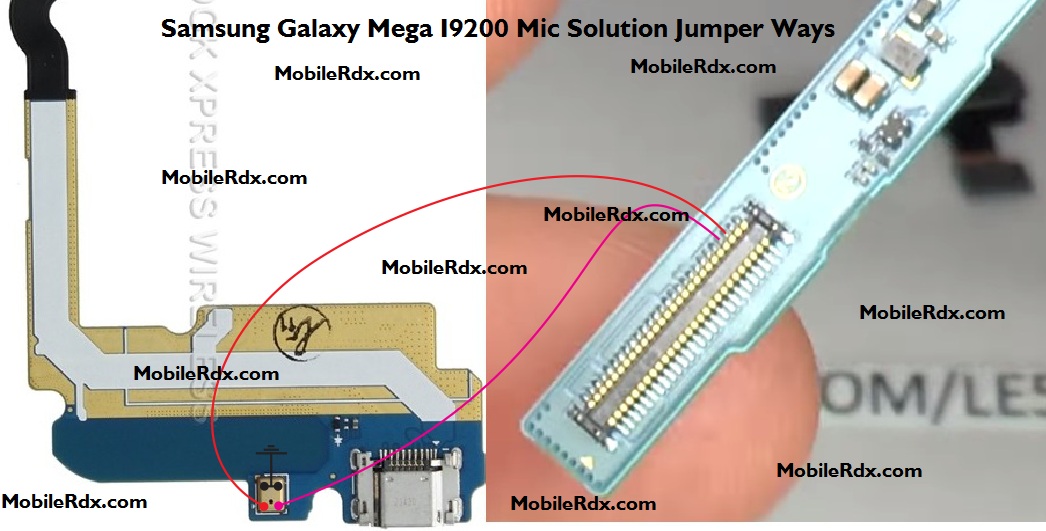

    This also includes the circuit connection line paths (mic ways) for easy tracing procedures. The two lines paths corresponds to the polarity of the audio signals, the red line is for the positive, the black line is for negative correspond as the positive voltage bias of the microphone. If this voltage bias when cut or damaged it will also result to a poor audio signal level or no microphone audio signal.

    Samsung Galaxy Mega 6.3 I9200 Mic, microphone, Solution, Jumper,Problem, Ways
    Samsung I9200 Mic Solution Jumper Problem Ways Mic  Not Working Microphone
    Samsung GT-I9200 Mic, Microphone, Mic Problem, Mic Solution, Mic Jumpers, Mic Ways

    Read More:-  Nokia 5235 Mic Problem Repair Solution With Jumper Ways
