Samsung I8190 Galaxy S III mini Charging Solution, Jumper, Problem, Ways Not Charging Problem
Here is the solution for Samsung I8190 Galaxy S III mini Not Charging problem like there is No Charging indication shows on the display when the battery charger is being a plug-in.
This problem is may cause by a faulty charger or faulty components on Samsung GT-I8190 PCB board. This problem may sometimes happen if the device suffered wet or water damaged or just exist.

Before proceeding, ensure that the battery and the battery charger are in good working condition.

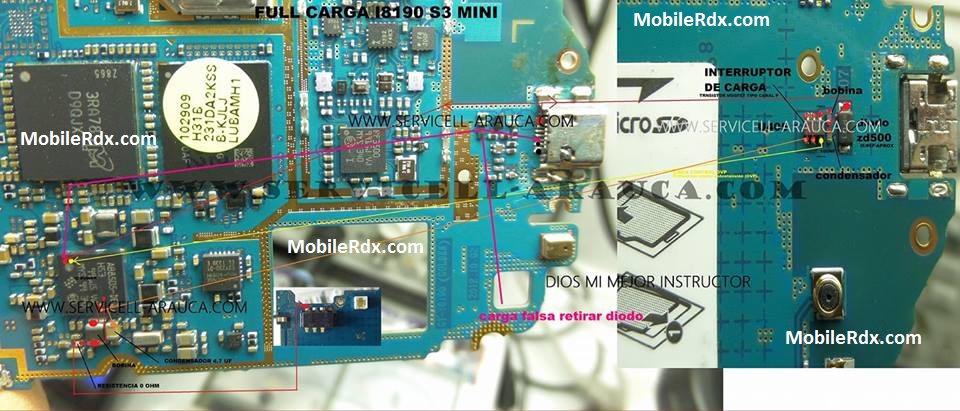

– Check all the components shown in the image below, you may start by checking the USB pin connector.
– Then the fuse, diode, capacitors and filter coil for possible open or short circuit.
– Trace each of the connection line paths from USB pins down to the components where it is directly connected.

Samsung I8190 Charging Ways Solution Full Charging Jumper
Now re-solder charging connector pins and check.

Check charging voltage with the help of a multimeter. Place Negative terminal of the multimeter on ground and Positive on a charging pin (1st pin from your left-hand side).
Make sure that the voltage is between 5V to 5.5V, if it is not then replaced charging connector.

All of the above steps will surely help you to resolve your Samsung I8190 Galaxy S III mini charging problems in the best possible manner. If you are lucky enough then simple workaround method will get the job done for you.

READ MORE:-  Apple iPad 3 Charging Problem Solution Repair Ways Jumper

If you have further Questions please leave a comment.
Note: Please note that even though every solution posted on our website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
