In Sony Xperia C5 E5563 Display has connected the motherboard with a cable connector. If your LCD is not working, you obviously have to check if a faulty LCD is not causing this problem. If the LCD is okay then check the LCD connector.

If you ever already been tried to replace a new replacement LCD screen and new flex cable wire and nothing happens but the display problem still exists like black screen display, blue screen display, white screen display, garbled and saturated screen display.

Sony Xperia C5 Ultra Dual smartphone was launched in August 2015. The phone comes with a 6.00-inch touchscreen display with a resolution of 1080 pixels by 1920 pixels.

The Sony Xperia C5 Ultra Dual is powered by 1.7GHz octa-core MediaTek MT6752 processor and it comes with 2GB of RAM. The phone packs 16GB of internal storage that can be expanded up to 200GB via a microSD card. As far as the cameras are concerned, the Sony Xperia C5 Ultra Dual packs a 13-megapixel primary camera on the rear and a 13-megapixel front shooter for selfies.

The Sony Xperia C5 Ultra Dual runs Android 5.0 and is powered by a 2930mAh non removable battery. It measures 164.20 x 79.60 x 8.20 (height x width x thickness) and weigh 187.00 grams.

Before you may proceed, you need to make sure first that the flex cable and the LCD are working fine or you have it tried with new replacement installed but nothing happens.
Note: this solution covers only for hardware repair and may not help on software related issues.

READ MORE:-  Sony Xperia L C2104 Charging Ways Solution Usb Jumper

Hardware Solution:

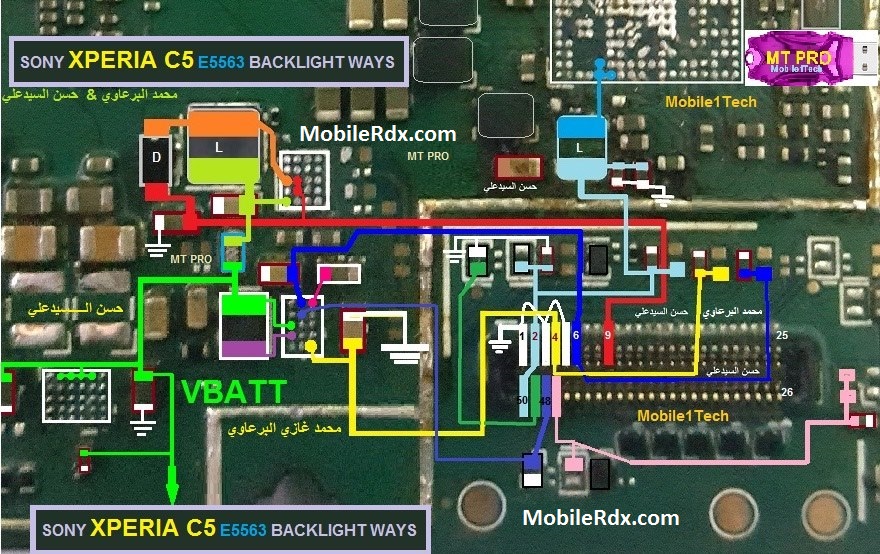

Sony Xperia C5 E5563 Display Light Ways Backlight Jumper - Sony Xperia C5 E5563 Display Light Ways Backlight Jumper

– Check the display pin connector, clean it, rework or re-solder it if necessary.
– Check the capacitors and coils, replace if necessary, and then check the VBAT voltage and the VIO voltage on it. Those are the supply voltages for the display
– Check the two DSI line choke filters

– If those parts above already checked and seems nothing wrong, the problem possibly exists on the Display UI chip. Reworking or replacing it will only fix the display problem

For damaged or lifted display pin connector or due to wet or water damaged, here’s the tracing guide if you might think that the problem lies on a broken display signal line paths.

Sony Xperia C5 E5563 Full Lcd Display Connector Jumper

If you have further questions please don’t hesitate to leave a comment.

Note: Every repairing solution posted here is tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.
