Oppo A37 Network Problem Repair Solution Signal Ways

Oppo A37 Network Problem Repair Solution Signal Ways
Oppo A37 Network Solution, Signal Problem, Network Antena Ways, Network Jumper, Pa Ic Solution, No Network Found

Here’s the solution that may possibly help fix and repair Oppo A37 Network Problem. Before you may proceed to use this solution, ensure that the device firmware is okay, restored and already flashed and or updated. This solution may only work if the device suffered a water damaged or heavily dropped by the user.

Problems

No network on your phone.
Low signals.
The phone just search for the network, but not connected.
Constantly falling signals.
Call drop issue.

Reasons for Problems

Your SIM card may be defective.
Your network operator may be having temporary difficulties.
GSM antenna contact may be rusted bay or could have found some kind of powder.
Contact Pines of the antenna are not adequately in touch with contacts GSM antenna.
Any of the coils and capacitors antenna network or Power Amp IC could be defective.
Secondary coil antenna may be defective.

Solution

Restart your phone and Oppo A37 check.
Remove and reinsert the SIM card and check.
Switch between different network modes and control.
Check with any other SIM card working, and that your SIM card or your network operator may be having problems.

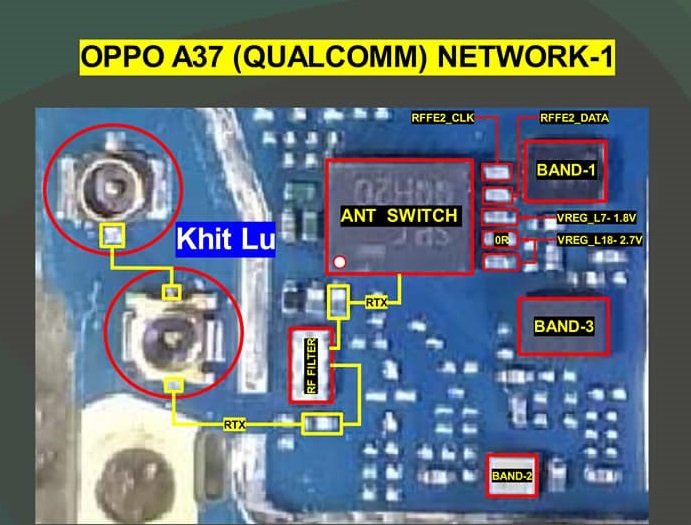

Oppo A37 Network Problem Solution Jumper Ways

Oppo A37 Network Problem Repair Solution Signal Ways

Repair Tips:-

Ensure that the device firmware is okay or successfully restored or flashed.
Try to upgrade to a higher version and write good flash files.
IF the firmware calibration already was done but seems nothing happens you may proceed to trace, check or replace the corresponding components showed on the solution above. Make sure that the PCB board condition is still stable and not like bent or some damaged spots. Check also if there is oxidation build up, clean it first before you may proceed.
First, check the PA supply voltage, this voltage is coming from the antenna terminal and you can trace it between capacitors showed on the solution above.
