    Samsung Galaxy A30s Charging Ways | Repair Not Charging Problem

    By

    If you are a mobile technician and searching for the Samsung Galaxy A30s Not charging problem, Charging Ways USB Charging Solution then you landed at the right place in this post we will show you the tested ad working solution of Samsung Galaxy A30s A307F Charging problem slow charging issue battery temperature problem.

    This mobile charging problem does not easily make a bad part, and though it is worse, the charging connector. So this mobile charging problem arises Then first switch the charging connector. And if the problem is not resolved even after the charging connector is changed. If you see the picture that I gave the picture, your jumper. Below I’ll tell you to step by step, how do you solve this problem.

    Samsung Galaxy A30s Charging Problem Ways Solution

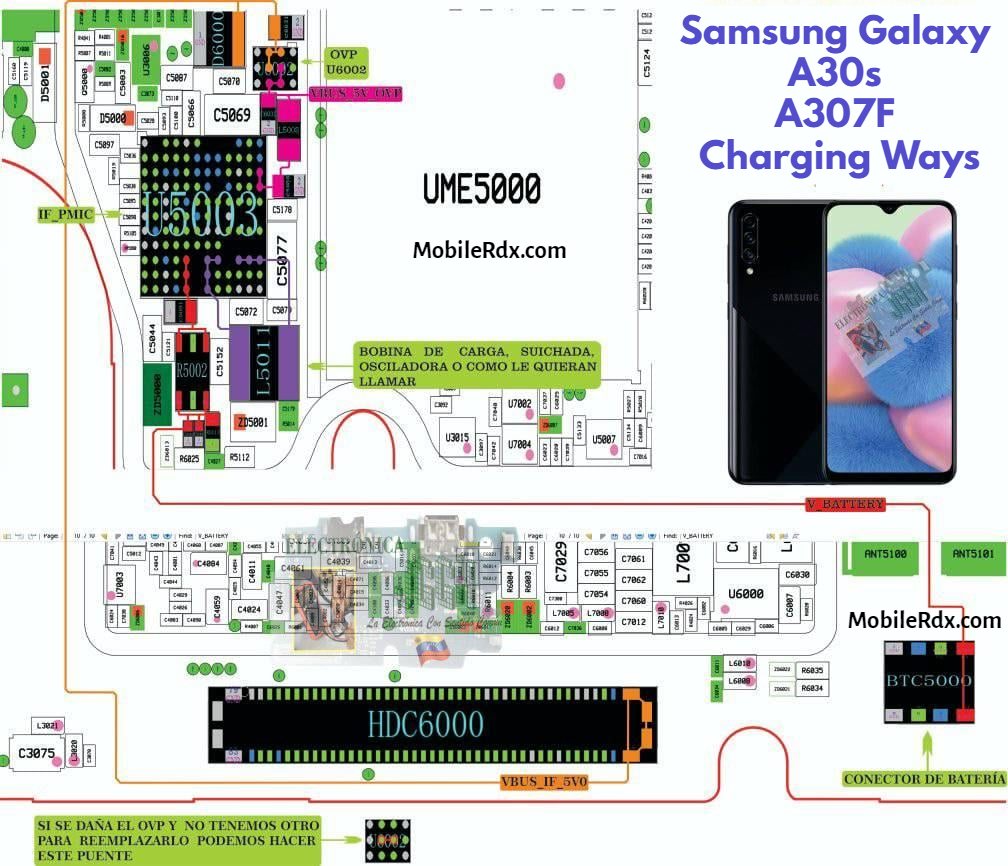

    In the below image we draw the Samsung Galaxy A30s A307F charging ways and its jumper check continuity using a multimeter if any track damage makes a jumper on the Redmi Note 8 Pro motherboard.

    1. First, open the mobile
    2. Then clean the section of the charging connector of the mobile motherboard
    3. Then remove the old charging connector and add a new connector
    After doing this, but the mobile phone in charge once, After doing these things, if the mobile is solved then fitting the mobile, If the problem is not solved after doing these, then I have given a picture below to do the job.
    Samsung Galaxy A30s Charging Ways Repair Not Charging Problem

    How To Repair Samsung Galaxy A30s Charging Problem:

    Samsung Galaxy A30s A307F Charging Ways Charging Jumper Solution Slow Or Fake Charging Solution

    After the mobile phone disassembles, you will need to take some steps shown in the diagram above.

    Read More:-  Samsung Galaxy J7 J700H Speaker Ways Audio Problem Solution

    Check the Charging jack and its points do they have good value if yes, then change the changer and check it and if the motherboard does not see the accurate value with the charging points, then after the dissatisfaction of the mobile phone you get something shown in the above diagram You have to take steps.

    Check the Charging jack and its points are good values if yes, then change the changer and check it and if the motherboard does not see the accurate value with charging points, then you will see all the parts and tracks given in the diagram of Samsung Galaxy A70 A705F Are to investigate.

    Below are the most common causes of why you Samsung Galaxy A70 A705F have trouble charging, and other problems concerning the battery like the grey battery issue:

    1. Shorted/faulty diode
    2. Shorted/faulty capacitors
    3. faulty resistors
    4. Bad/damaged charging coil
    5. Shorted/faulty IC
    6. Bad USB Port
    7. Partial contact

    If any corrosion or carbon and water damage or any component are damaged, then the motherboard should be replaced carefully. If a track is lost then the jumper is applied and if any part is damaged or broken, replace it with the new one.

    More information about this problem and solutions for new tips and tricks are going to this page, if there are new updates, there will be updates. Below are some related posts, you can read more about mobile phones.
