Motorola Moto E4 Plus Display Light Ways | Backlight Solution
Here is the tested solution of Motorola Moto E4 Plus XT1773 Display Light Ways And Backlight Jumper Solution such as a blank display or no display at all and otherwise a corrupted or garbled display. This solution may help you with easy repair procedures. in case you are going to troubleshoot display problems such as blank display, dark screen display, white screen (with tones), No backlight LED that results from wet damaged or accidentally dropped issues by the users.
The problem of damage with no backlight is often symptomatic like an LCD that has no display, the LCD screen becomes white. Or in general, there is no light produced by the LCD screen but the ringing and notification sound can still be heard.
What Is An Motorola Moto E4 Plus LCD or Backlight?
To start with, an LCD is the digital display interface of your phone, it is the interactive part where you see what goes on as you operate or tap on an icon, watch a video, play music or games, etc. When the LCD (liquid crystal display) is faulty or damaged, you one won’t be able to enjoy it as before. This is where the LCD backlight comes in, the backlight is a series of LEDs (light-emitting diodes) well arranged and suited in the screen layers to give illumination to the LCD screen.
Motorola Moto E4 Plus Display Backlight Problem Solution
To fix the dark screen Motorola Moto E4 Plus backlight problem, you may first try to replace or install a new Display screen module, to easily confirm if the LCD’s backlight LED’s were still working or already damaged.
You can also check the LED’s using the multimeter if you can manage without damaging the LCD flex connector.

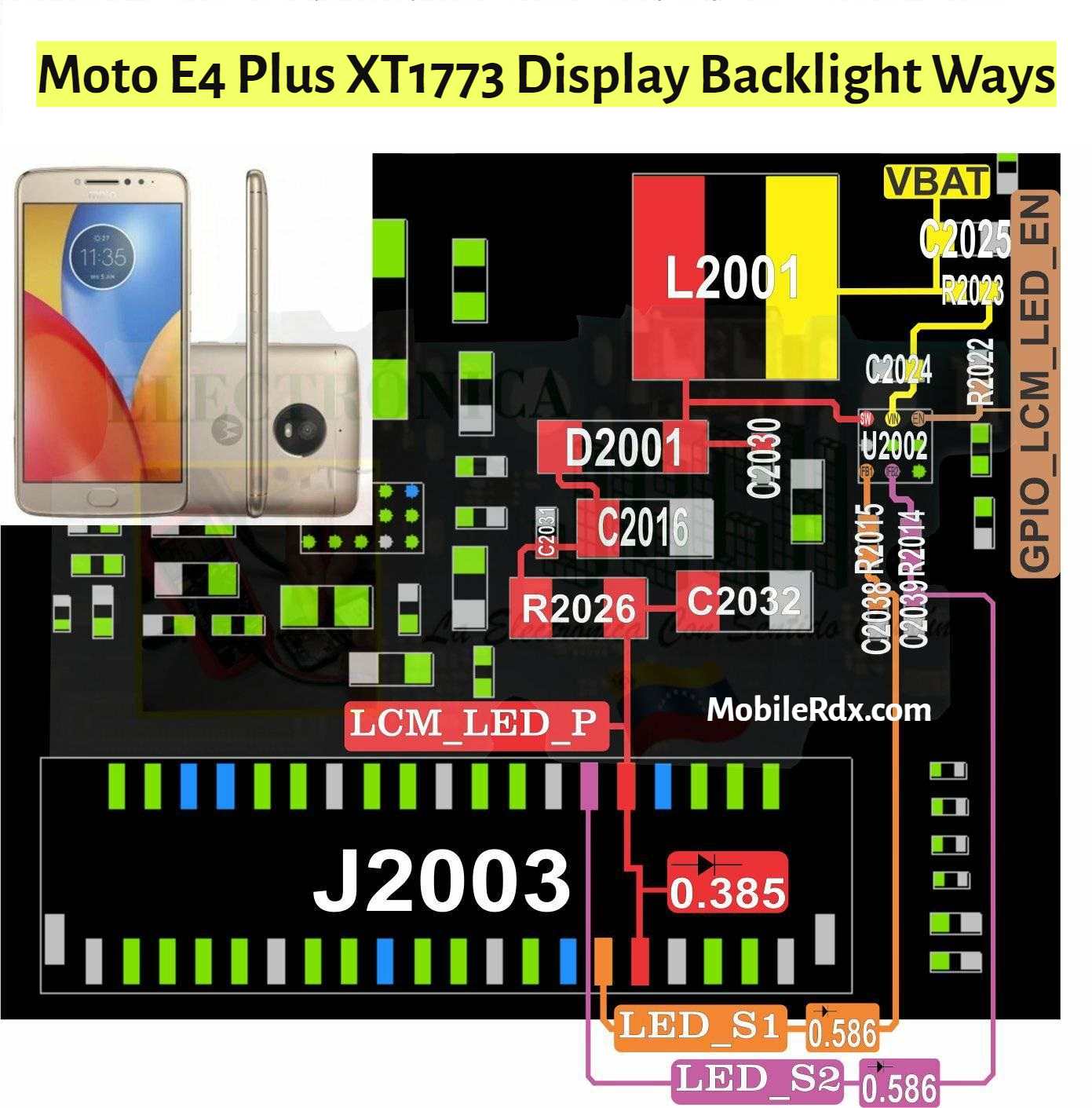

If the newly installed LCD still shows the same problem and the LED light doesn’t light up, refer to the solution below and locate the highlighted components on the PCB board.
Motorola Moto E4 Plus Backlight problems that you might encounter:
- White Display
- No Display
- Lines on Display
- Low Light on Display
- No Backlight
