Samsung Galaxy Fame Lite S6790 Power Key Jumper Solution

Samsung GT-S6790 Power On-Off Button Ways Switch Jumper
Samsung Galaxy Fame Lite S6790 Power Key Jumper Solution
Here’s the Samsung Galaxy Fame Lite S6790 solution for not working Power/End key problem. This solution may help fix if the phone shows charging indication or charging icon when the battery charger is plug-in but failed or unable to turn it ON.

In Samsung GT-S6790 the power ON-OFF key aside from it is on the keypad flex matrix it is also connected to the keypad filter IC. The solution below shows the connection line paths of the power key, this is useful without changing the filter IC and this can be used by bypassing the power key connection from the filter IC.

Just refer to given solution below and trace the said power key line paths.
Samsung Galaxy Fame Lite S6790 Power Key Jumper Solution

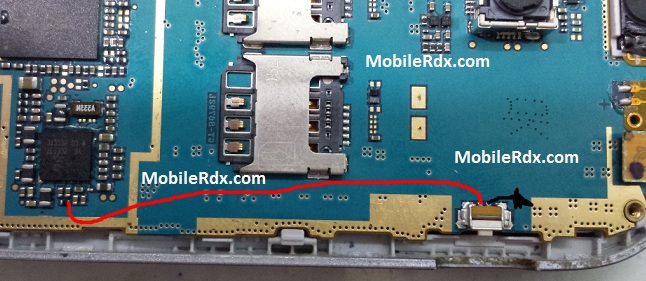

Here is the hardware solution for Samsung Galaxy Fame Lite S6790  power button problem:

The two upper or legs of the power switch is connected to the PCB’s ground lines.
The other two which is in lower is the power switch line paths, just locate the test spots as shown on the solution above where to apply a jumper to reconnect it connection.

If you have further questions please don’t hesitate to leave a comment.
Note: Every repairing solution posted here is tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.
