Blackberry Q10 Charging Ways
Blackberry Q10 Usb Jumper

This solution is for repair Blackberry Q10 USB charging Connector Ways Jumpers. If you have broken usb connector prints consult the diagram below. This solution works on all Blackberry Q10.

USB connector for these phones is not usually busted but if it is, the best course of action is replacing it with a new one. If the connector prints are broken on the motherboard this diagram below can help you. I have marked all 5 legs of the USB connector with different colors to avoid confusion, Red is for Ground.

Please Note that we will edit these solutions or add new ones if found in this page at any time in the future. So feel free to come back any time on this page to stay up to date.

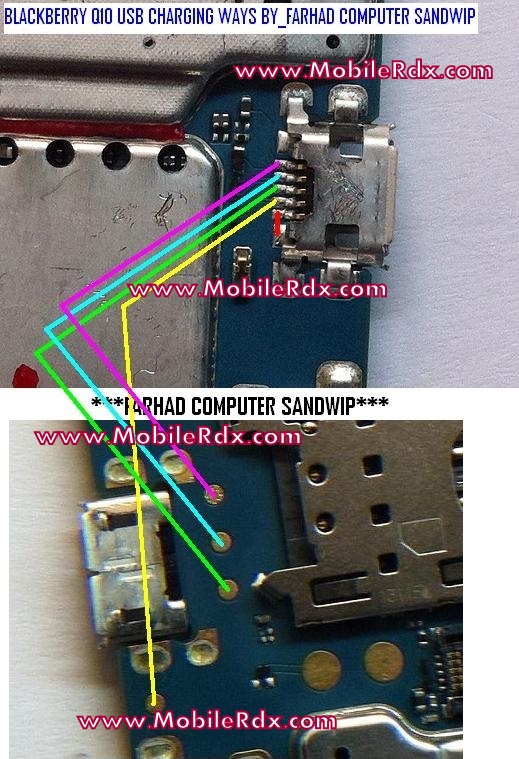

blackberry q10 usb and charging connecter ways
Blackberry Q10 Not Charging Way

If you have further Questions please don’t hesitate to leave a comment.

Note: Every diagram we post on our site is tested by one or more members of our team. Still Use them at Your Own Risk we are not responsible if these solutions may cause any harm to your phone.
