Nokia 206/2060 RM-872/RM-873 Flashing USB Ways Pinout Jumper You Can Use This Cable By Any Box.
See 206 Repair Solutions From Here

Take a USB Data Cable And Cut It Head Side, Then You Find 4 Different Cable. You Need Solder It Like Bellow Picture.

Click On Image For View Large Picture

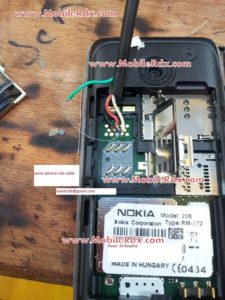

nokia 206 usb ways pinout 225x300 - Nokia 206 Usb Pinout Ways

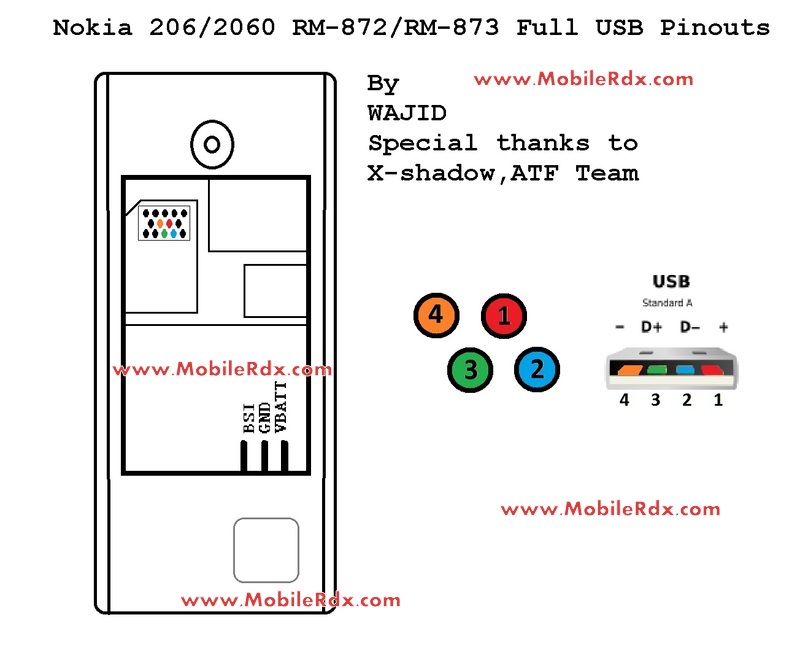

206 pinout jumper 300x242 - Nokia 206 Usb Pinout Ways

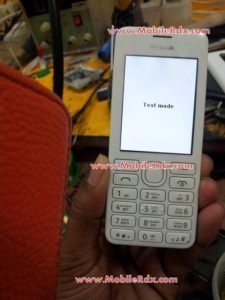

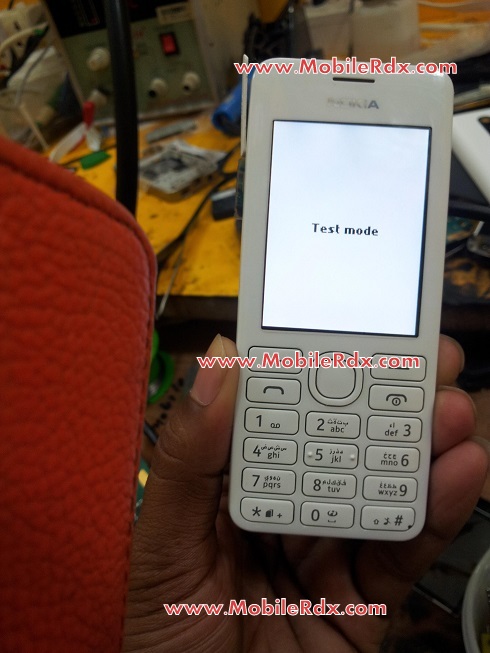

20130519 121406 225x300 - Nokia 206 Usb Pinout Ways

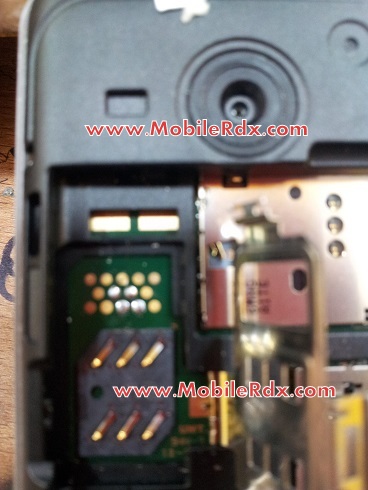

20130519 122525 225x300 - Nokia 206 Usb Pinout Ways
Nokia 206 flash by hwk
Nokia 206 usb flashing
Nokia 206 usb pinout ways jumper
www.MobileRdx.com
