Nokia Lumia 520 Ringer Speaker Jumper Ways

nokia lumia 520 ringer solution
nokia 520 speaker solution
nokia 520 ringer jumper ways
the solution in this article is for nokia 502 ringer problem. the ringer is connected to the bottom of the phone’s motherboard. ringer also called ihf-speaker is used for music and ringtones and is not used for calling. if you need the speaker or also called earpiece solution for nokia lumia 520 read this article nokia earpiece problem ways solution.

this is pretty simple solution i have marked both positive and negative jumpers of nokia 520 ringer in this diagram. before making these jumpers make sure that faulty ringer module is not causing this problem.

please note that we will edit these solutions or add new ones if found in this page at any time in the future. so feel free to come back any time on this page to stay up to date.

here are ringer ways problem solutions. please observe carefully.

nokia 2Blumia 2B520 2Bringer 2Bspeaker 2Bways - Nokia Lumia 520 Ringer Speaker Jumper Ways
OR

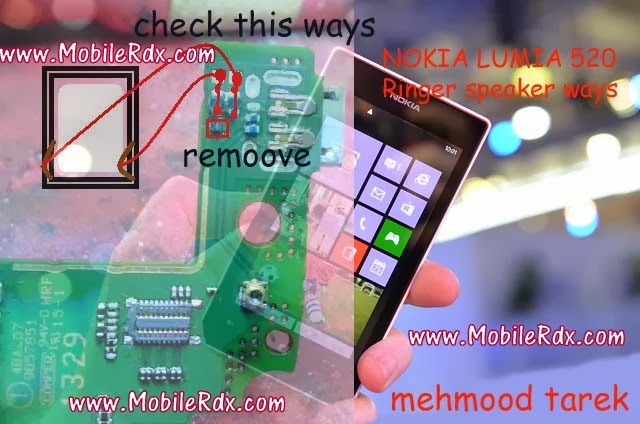

nokia lumia 520 ringer ways1 - Nokia Lumia 520 Ringer Speaker Jumper Ways

if you have further questions please don’t hesitate to leave a comment.

note: every repairing solution posted here is tested by at least one member of our team. use the information available here at your own risk. we are not responsible if any harm comes to your device during the repairing process.

www.MobileRdx.com
