Samsung Gt-N7100 Touchscreen Pin Connector Jumper Solution

If you are looking and having trouble finding where to put a jumper if the touchscreen pin connector is already gone or lifted due to water water damaged on Samsung Galaxy Not 2 Gt-N7100. This solution might help you to ease out your hard time finding where to solder a jumper wire on it just to fix a touchscreen not working problem.

Samsung Gt-N7100 Touchscreen ways,track , jumper

Samsung Galaxy Not 2 Touch Not Working
Repair Samsung Gt-N7100 Touchscreen Problem
How To Fix Samsung N7100 Note 2 Touch Connecter
This solution exactly shows the connection line paths of the touchscreen pin connector of the PCB board layout. You may only need to check its corresponding pinouts if the connection were already cut-off or have an open circuit, then solder a jumper on it, for it is only the options.

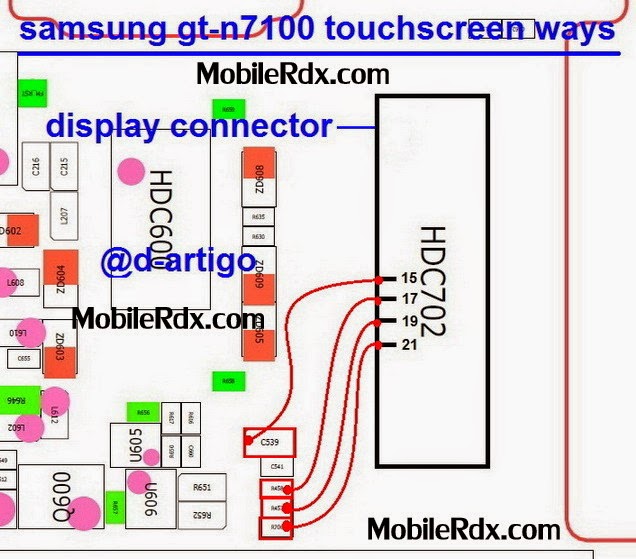

Samsung Gt-N7100 Touchscreen Pin Connector Ways Solution

samsung gt n7100 note2 touchscreen connecter ways jumper - Samsung Gt-N7100 Touchscreen Pin Connector Jumper Solution
view larger image here:

Jut also check out all the corresponding components where the particular pins is connected for it will also cause the problem if already damaged or corroded.

Note: we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
