    Samsung S5570 Charging Usb Connecter Ways

    By PrateetOctober 7, 2014
    Here’s the Samsung Galxay Mini S5570  Solution for Not Charging Problem on the USB pin connector. This may help if the phone suffered wet damaged and resulted to no charging indication when the wall charger is plug-in.

    Before proceeding, ensure that the battery and the battery charger are in good working condition.
    – Check all the components shown on the image below, you may start by checkingthe USB pin connector.
    – Then the fuse, diode, capacitors and filter coil for possible open or short circuit.
    – Trace each of the connection line paths from USB pins down to the components where it is directly connected.

    Hardware Solution:

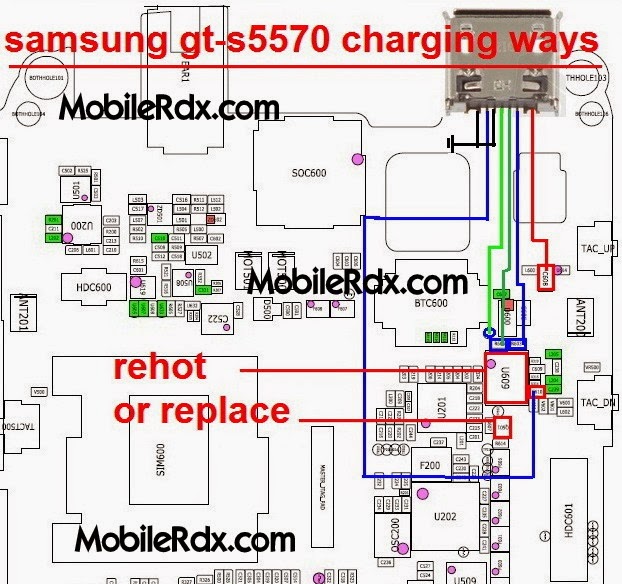

    Samsung S5570 Charging Solution
    Samsung Galaxy S5570 Charging Jumper Ways

    Samsung S5570 Usb Connecter Ways
    samsung s5570 charging usb connecter jumper
    Note: Every diagram we post on our site is tested by one or more members of our team. Still Use them at Your Own Risk we are not responsible if these solutions may cause any harm to your phone.
    www.MobileRdx.com
    Read More:-  Samsung GT-I8200 Ringer Not Working Problem Jumper Solution
