    MobileRdx
    Samsung

    Samsung GT-C3222 Charging Solution Usb Jumper

    By PrateetOctober 7, 2014
    To fix charging problem, you may first ensure that the wall charger you are using is properly working and the battery is not totally drained. Continue by checking the charging pin connector or DC jack connector, visually check it for possible damaged. Clean the PCB board charging pads and battery connector. If the problem still occurs proceed to components troubleshooting.

    Samsung GT-C3222 Charging Solution
    Samsung C3222 Charging Jumper Ways Track
    Samsung GT-C3222 Usb Connecter Jumper

    Samsung C3222 Not Charging Problem
    samsung gt c3222 usb charging way
    Or

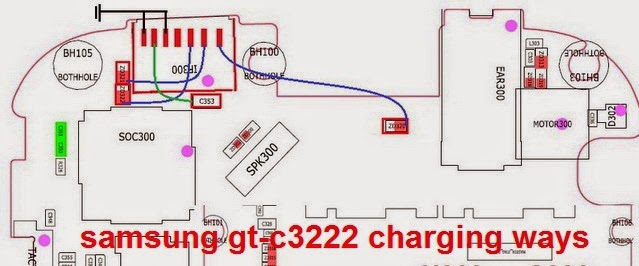

    samsung 2Bgt c3222 2Bcharging 2Bways

    Solution for Samsung GT-C3222 if ever encountered a not charging problem.
    The solution above provides the connection line paths of the charging circuit.

    Before proceeding, ensure that the battery and the battery charger are in good working condition.
    – Check all the components shown on the image below, you may start by checking the USB pin connector.
    – Then the fuse, diode, capacitors and filter coil for possible open or short circuit.
    – Trace each of the connection line paths from USB pins down to the components where it is directly connected.

    www.MobileRdx.com
