Samsung Galaxy S Duos 3 G316H Volume Up Down Keys Not Working Jumper Solution
Samsung SM-G316H Volume Keys Problem Jumper Ways Solution

Here’s the solution for Samsung Galaxy S Duos 3 G316H volume up and down control buttons that doesn’t working. This solution may only works and can be applied if the switches assembly is okay and or already been replaced but still it doesn’t respond when being pressed.

The solution below shows the line paths of these said switches to the two EMI filter Ic’s which can be used to trace its lines paths or to determine which filter IC has to be checked or then replaced if found damaged.

Samsung SM-G316H Volume Up Down Button Ways

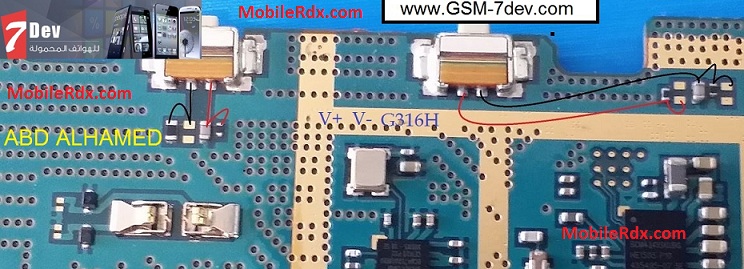

Samsung G316H Volume Keys Jumpering Tracks, Path

Check volume keys up down of Samsung Galaxy S Duos 3 G316H, is it working, not working, or missing some keys.Make a keys button test if possible.

If you are facing volume keys problem you can solve in few steps as describe in this post. If you have complete all above steps then you can dis assemble the phone and
see motherboard if there is some carbon broken parts and water damages in it. Make it clean and apply hot air with heat gun to make it dry.
