    Samsung SM-J700H Volume Button Problem Volume Key Ways

    By Mobile RdxMay 10, 2017

    Samsung SM-J700H Volume Button Problem Volume Key Ways
    :Samsung Galaxy J7 J700H Volume Keys Up down Problem Solution with Jumpers

    Here’s the connection line paths for Samsung Galaxy J7 J700H that may useful in troubleshooting a not working Volume control both UP (+) and DOWN (-) button switches. This shows the connection line paths (jumper ways) specially when trying to fix the button switch if severely damaged or the PCB solder pads has been already lifted. You may use a multimeter to trace each of the volume button keys terminals connection across to a components where it is being connected. This solution may also work with Samsung SM-J700H phones.

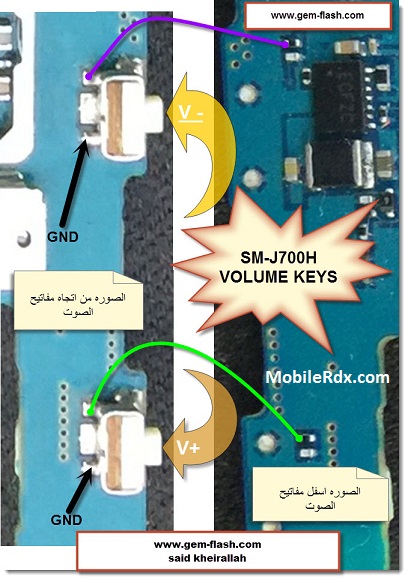

    samsung-sm-j700h-volume-button-problem-volume-key-ways

    To fix this problem you may first visually check the button switch assembly for possible damaged. Just replace it, and carefully re-solder it without lifting the PCB board terminal solder pads.

    If the said switches assembly seems okay but it still it does not respond or work. Refer to the solution above and locate the highlighted component on the PCB board.

    Samsung SM-J700H Volume Up Down Button Solution
    Samsung Galaxy J7 J700H Volume Key Ways,Jumper, problem, Solution, Volume Up-Down Button Ways

    If you have any further Questions please leave a message.

    Keep in mind:- The every solutions posted on Our website is well tested before by our specialist team, But still we do not take any responsibility for any damage it may cause to your cell phone. Use these repairing solutions at your own Risk, Thank you.
