Samsung Note 4 N910F Fingerprint And Home Button Ways Solution

Samsung Note 4 N910F Fingerprint And Home Button Ways Solution
Samsung SM-N910F Home Button Ways Problem Jumper

One of the most important physical key that is found in your Samsung Galaxy Note 4 N910F is its Home Button And Fingerprint Sensor. Home button can be said as one of the core button of Samsung N910F, and this is mainly because it is the button that allows you to perform different functions including: Coming out of home screen from any number of apps, close all the running apps and for performing several other functions.

You surely cannot use your Samsung Note 4 N910F with a problematic Home button, as it will not only trouble you in a variety of ways but will also irritate you to the masses.

In the following lines you will get to know about all the possible Samsung Note 4 N910F Home button problems, reasons of those problems as well as their solutions:

Problems

  • Home button not working.
  • Delay in response when button is pressed.
  • Home button becomes stiff and is not pressed easily.
  • Home button needs to be pressed very hard in order to get it working.

Reasons of Problems

  • Dust might be present at the corners of home button due to which it becomes stiff or you need to press it very hard in order to get it working.
  • Might be due to phone lagging problem.
  • Home button strip might have lose contact with on-board connector.
  • Might be due to any kind of physical or water damage.
  • Home button components might be damaged from inside.

Hardware Solution:

READ MORE:-  Samsung GT-I8910 Mic And Home Key Ways

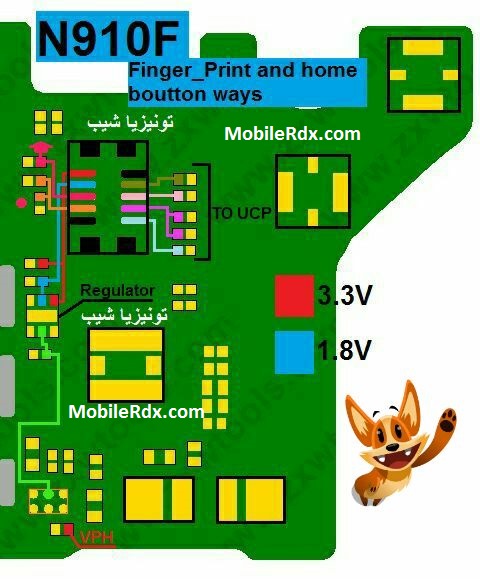

Samsung Note 4 N910F Fingerprint And Home Button Ways Solution - Samsung Note 4 N910F Fingerprint And Home Button Ways Solution

Samsung Galaxy Note 4 N910F Home Button Ways Problem Key Jumper

When it comes to hardware, the very first thing that you need to do is to unplug home button strip and check its onboard connector for any loose contacts.
s4 home button strip connector and on-board connector

Clean both home button strip and its onboard connector, after you do that re-plug and check.
In case display strip still has a loose contact with on-board connector than change the entire charging dock strip, (Home button is at the charging dock strip).

Make Jumper As Shown Above Image.

Samsung Note 4 N910F Home Key Ways, Home Button Jumper, Home Button Ways, Home Key Not Working Problem Repair, Home key Ways, Centre Button Not Working Repair.
