Huawei Mate 8 NXT-L29 Charging Solution Charging Ways Not Charging Problem USB Ways Fake Charging Problem

Here is the solution for Huawei Mate 8 Not Charging problem like there is No Charging indication shows on the display when the battery charger is being a plug-in.
This problem is may cause by faulty components Huawei Mate 8 PCB board. This problem may sometimes happen if the device suffered wet or water damaged or just exist

There have been some reports involving P9 units that won’t charge when plugged in. The worse thing is when the handset won’t respond to the wired charging, there’s no other option for owners as the phone doesn’t support wireless charging.

Should your device refuse to charge, you are required to troubleshoot as there’s no other alternative to replenish its battery. That’s the very purpose of this post; I will walk you through in troubleshooting you Huawei Mate 8 that won’t charge.

For those that own a Huawei Mate 8 , you may be having a problem that the Nokia 5 not charging correctly. Some  Huawei Mate 8 owners thought that the USB cable was an issue for the Samsung Note 5 not charging. So they went out and purchased a new charger, instead, some quick methods that we’re about to suggest can generally fix the problem when the Nokia 5 not charging when plugged in.

Below are the most common causes of why you Huawei Mate 8  have trouble charging, and other problems concerning the battery like the grey battery issue:

  • Sunken sockets on the device, or bent/ broken connector
  • Factory-defective phone
  • Defective battery
  • Damaged charging unit or cable
  • Defective phone
  • Temporary battery issue
READ MORE:-  Huawei MediaPad T1-A21L Charging Solution Battery Connector Ways

Hardware Solution:

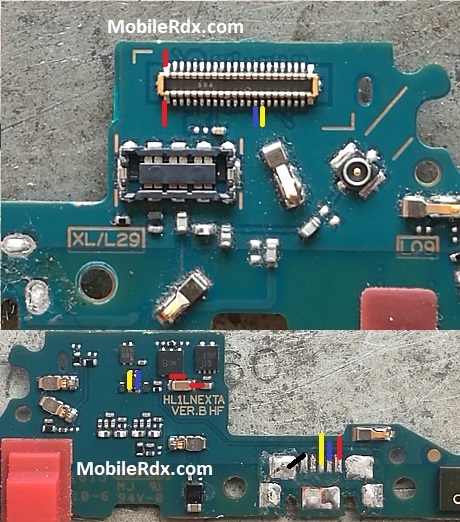

Huawei Mate 8 Charging Ways Solution USB Jumper
dig

Check Charging connector for any kind of water damage, if it is then clean it and check.

Now re-solder charging connector pins and check.
Check charging voltage with the help of a multimeter. Place Negative terminal of the multimeter on ground and Positive on a charging pin (1st pin from your left-hand side).
Make sure that the voltage is between 5V to 5.5V, if it is not then replaced charging connector. (Charging Connector can be replaced by heating it from the opposite side of the board, while heating it, pull charging connector with the help of Tweezers).
Now remove metal sheet covering the charging section (It contains Charging IC and Components).
Check continuity between Fuse and Charging Pin (1st from your left-hand side). If there is no continuity, place jumper.
Also, check the following, and replace them if damaged:
Fuse
Capacitor
Coil
Heat charging IC, if it is faulty then replace it.
Now check charge at the battery terminals, if it is not standard voltage then re-solder or replace battery terminals.
