Jio F90M EDL Test Point – Boot Jio F90M Into EDL 9008 Mode

Methods To Enter EDL Mode LYF Jio F90M EDL(9008) Mode Solution, Jio F90M Flashing
Like other Qualcomm processor chipset devices, the LYF Jio F90M also supports Emergency Download Mode or EDL Mode. This mode will be much handy when your device gets bricked and unable to unbricked using the ADB. All credits goes to Android developer member team for working on the EDL mode. Here below is the simple guide to LYF Jio F90M boot into EDL mode.

LYF Jio F90M officially locked the bootloader by reasoned to improve security system. Of course not all devices, only the latest. The impact, we can no longer flash device through fastboot. Another method to flash Jio phones is through EDL Mode. But there are still many LYF users who do not know how to get a device into EDL Mode, the reason is enter EDL Mode is more complicated than going to Fastboot. Sometimes special tools are needed.

What is EDL 9008 Mode?

EDL stands for Emergency Download Mode. This mode is like an emergency door to transfer the android operating system (stock ROM) from computer to EMMC via processor when your device is boot loop, hard brick, or dead boot. The EDL Mode feature is available on Qualcomm Snapdragon devices.

Jio F90M EDL Test Point Ways:

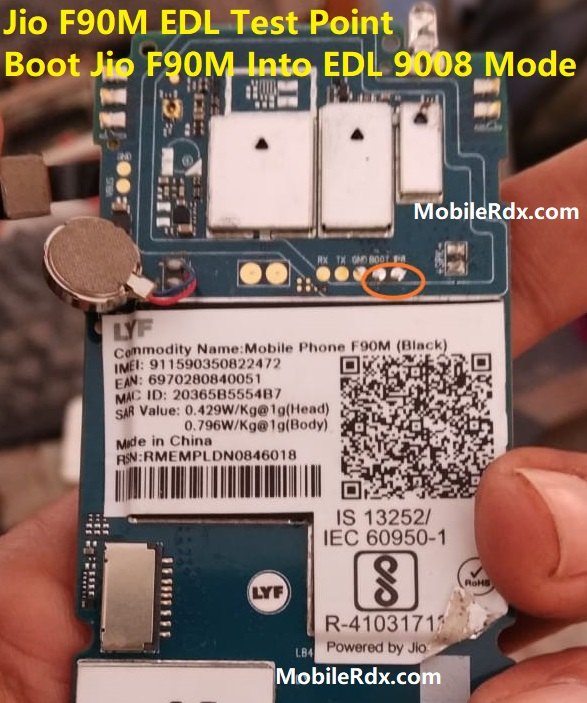

Jio F90M EDL Test Point Boot Jio F90M Into EDL 9008 Mode

A surface-mounted test point is basically a small wire loop designed as an attachment point for test probes on a circuit board containing surface-mount components. It is relatively small, about the same size as a standard chip capacitor package.

READ MORE:-  Nokia 2.1 TA-1084 Test Point Boot Into Edl 9008 Mode

The location of test points on each type of phone will vary depending on the type of PCB. On Qualcomm phones generally provided test points to force the device into emergency download mode (9008).

Preparation:

Paper clip, Copper wire, Tweezers

Special screwdriver for opening hp

Qualcomm Flash Tool (skip for the existing ones)

Rom Fastboot LYF Jio F90M

USB cable LYF Jio F90M

Operator SIM card

Uses Of LYF Jio F90M Test Points

Install stock ROM on Jio F90M
Flash LYF Jio F90M without unlock bootloader. Bootloader unlocking permission not required.
Recovery dead LYF Jio Jio F90M flashing firmware.
Remove Xiaomi MJio F90M userlock without any tool.
Upgrade or downgrade LYF JJio F90Mfirmware versions easily.

How To Enter EDL Mode:

Open Back Cover LYF Jio F90M using SIM Used Operator and then use a screwdriver to open the bolt

When it is open, please remove the flexible battery label, then leave it for a few minutes and reconnect

You notice the two dots in the image below that are close together

Connect the other end of the USB cable to the computer and the other end of the USB cable to Xiaomi LYF Jio F90M

Run device manage> note the USB port, what F30c you are Qualcomm’s HS-USB Diagnostics 9008E, if yes you take Tweezers or copper wire then samsungkan to point Test Point that you have seen in the image just to change the Qualcomm HS- USB Diagnostics 9008

When it becomes a Qualcomm USB Port of HS-USB Diagnostics 9008 then you can Flashing LYF Jio F90M you as usual

READ MORE:-  Mi Redmi Note 6 Pro Test Point - Redmi Note 6 Pro EDL Mode

Wait for Flashing process is complete

Congratulations LYF Jio F90M  you have recovered from the dead
