Samsung Galaxy A10 A105F Charging Paused Problem Solution

Samsung Galaxy A10 A105F Charging Paused

Some of Samsung Galaxy A10  smartphone user found that their device charging paused battery temperature problem, in particular, Samsung Galaxy A10 A105F, are stopped charging due to their battery device temperature is too low.

They can know the problem because usually while the problem occurred, no matter what the core temperature of their battery device is, the screen of the device displays this message: “Charging paused: Battery temperature too low”.

Maybe this could be hard to believe by Samsung Galaxy A10 A105F device users as Samsung smartphones usually use Li-ion batteries that only problematic at the charging when the temperature is lower than 4°C.

Usually, the faulty thermistor that reads the battery temperature is the most common issue that believed as the culprit of this problem. However, out of what is the cause of this problem, a smartphone that cannot be charged is a fatal problem that you need to fix it immediately.

The following explanations are some steps that you can use to solve charging paused problem on your device.

Problems

  • Not charging.
  • Samsung Galaxy J7 Prime heats up during charging.
  • No response when charger is connected.

Reasons for Problems

  • The charger might be faulty.
  • Charging connector/pin might be faulty or is dirty.
  • Charging dock strip is faulty.
  • A phone might be water damaged, hence damaging the charging dock/charging pin.
  • There are also chances that the phone’s battery might be faulty.
  • The uneven voltage at different points on the charging dock.
  • Any of the components or capacitors might be damaged or short.
  • Power IC could also be faulty, hence forbidding your Samsung Galaxy A10 A105F to get any charge.
  • Battery pins could be rusty or damaged.
READ MORE:-  Samsung Galaxy C5 C5000 Backlight Ways Display Jumper Solution

Samsung Galaxy A10 A105F Charging Paused Problem Hardware Solution:

The Problem is the charging pause or we called thermistor.
so you Need to remove the thermistor and replace from the other board.
Just Follow the Picture Shown Below.

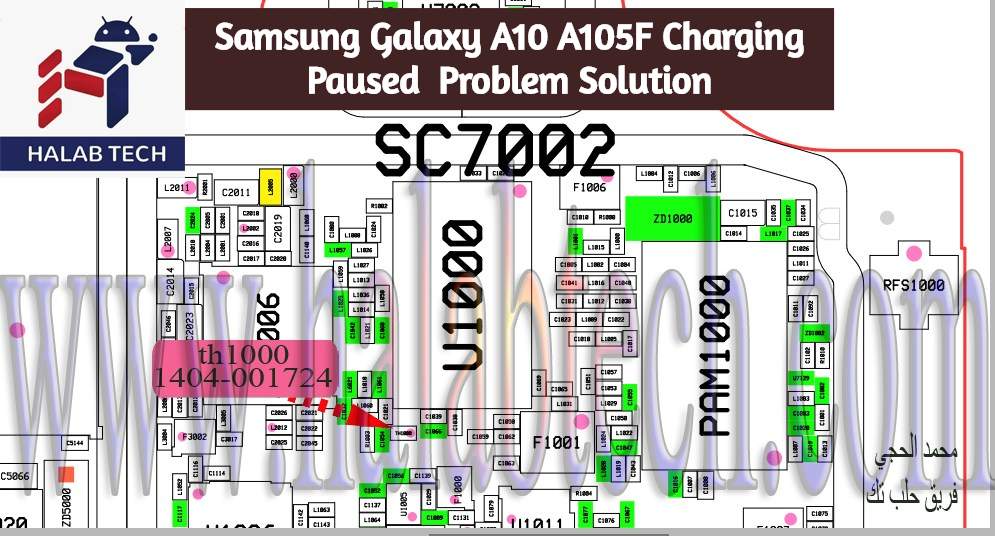

Samsung Galaxy A10 A105F Charging Paused Problem Solution 1

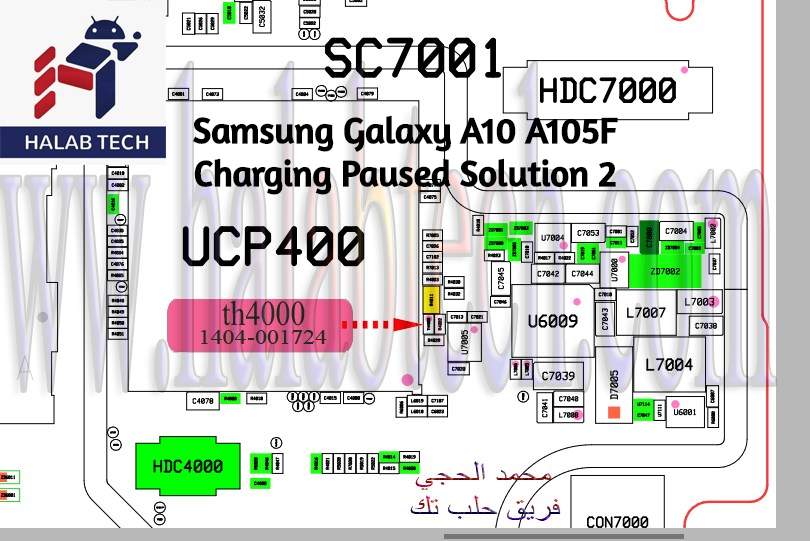

Samsung Galaxy A10 A105F Charging Paused Solution 2

In order to overcome the water damage problem, all you have to do is to:

Clean charging dock strip and check.

If the problem persists or if the pins are damaged then you need to replace the entire charging dock strip.

Now check the voltage of 1st pin (from right) of charging connector with the help of a Multi-Meter, if there is a problem then re-solder charging pin.

Now check voltage at the capacitor, if it is zero then check whether it is short or not if it then changes the capacitor. If not then:

Check the connection between the charging pin and Capacitor, if the connection is broken re-solder it or place a jumper.

The charge is provided to the Samsung Galaxy A10 A105F board via Capacitor.

If you have further Questions please leave a comment.
Note: Please note that even though every solution posted on our website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
