Nokia 5 TA-1053 EDL Mode PINOUT – Nokia 5 Test Point
This article shows you the way to bring Nokia 5 TA-1053 into Test Point mode which is formerly known as Emergency Download (EDL) mode. Despite it is an advanced method, some users still prefer to use this technique to bypass the need of officially unlocked bootloader.
There might be a situation when your device got bricked or in the boot loop state, but the bootloader has not been unlocked yet. Hence, this situation will force you to deliberately use the Test Point method. It would be impossible to unlock the boot loader since the device is bricked or is bootlooped.
What Is Nokia 5 EDL Mode?
If you are newbie user then probably EDL mode may be new word for you. But if you are involved in rooting and flashing firmware then absolutely not.
In short, EDL mode is also known as an emergency mode for mobile. Technically all the Xiaomi devices come with EDL mode option. If you want to install or update your own Xiaomi or Redmi phone then you have many options to flash new stock ROM on the device using Recovery Mode or using fastboot mode. Both methods have some limitations like Recovery ROM can be used only to update higher version and you can’t downgrade Xiaomi version.
Just boot the device into EDL mode or emergency downloading mode and flash fastboot rom /firmware using Mi flash tool. It will fix all existing errors or you can recovery your dead phone again.
It’s really must to understand that EDL mode flashing is an universal method for all Xiaomi and redmi devices. But EDL booting process may be different for different devices. For some devices, you can use EDL boot command but problem is that now a days edl command don’t work for all latest Nokia smartphones. So test point is the easiest and perfect method to boot any Nokia phone into edl mode using test terminals.

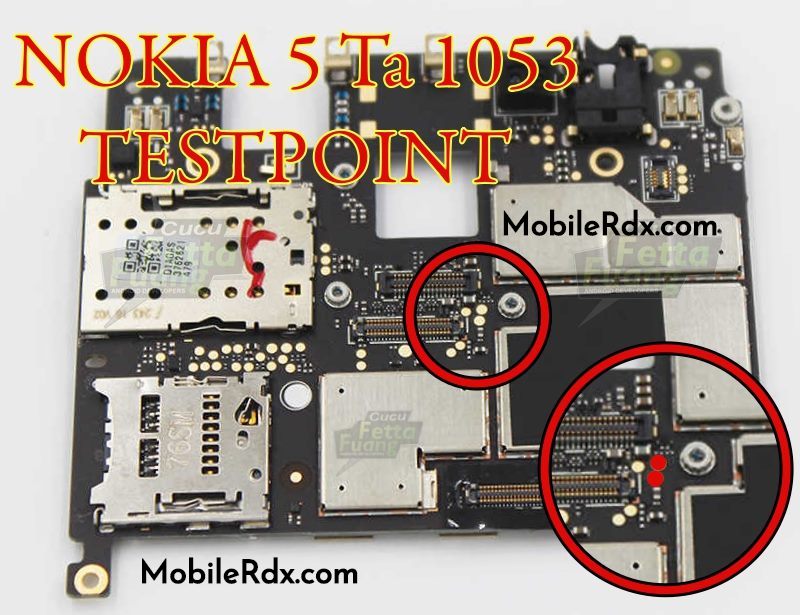

Nokia 5 EDL Mode PINOUT
Find EDL MODE FOR Nokia 5 TA-1053
- Power off the device if possible.
- Open back cover of dead Nokia 5. [You may do Google to tear down Nokia 5 TA-1053 at home]
- Once you are able to remove back cover, disconnect the batter connector first. Battery not required for EDL mode.
- Now remove the black tape to visible the edl points of Redmi Note 5 pro as shown below.
- Now EDL mode or Nokia 5 edl test points are in front of you. And you can use them to install firmware on Nokia 5 TA-1053 without unlock bootloader.
So guys this is all about Redmi note 5 pro emergency downloading mode or edl mode. Now you can find the Nokia 5 test points easily.
Uses Of Nokia 5 Test Points
- Install stock ROM on Nokia 5 TA-1053.
- Flash Nokia 5 without unlock the bootloader. Bootloader unlocking permission not required.
- Recovery dead Nokia 5 by flashing firmware.
- Install stock ROM easily, if the device is not able to boot into fastboot mode or device stuck on the Nokia logo.
- Remove Nokia 5 TA-1053 FRP Lock without any tool.
