    EMMC Pinout

    Oppo A3s ISP (EMMC) Pinout For Flashing And Remove FRP Lock

    By Mobile RdxJanuary 2, 2020

    Oppo A3s ISP (EMMC) Pinout For Flashing And Remove FRP Lock

    If you are a mobile technician searching for Oppo A3s CPH1853 ISP Pinout then you landed at right place. in this post, you will file Oppo A3s ISP Pinout for remove User Lock And Pattern Lock Bypass Frp Lock and also you can use this isp pinout for flashing.

    Here is the  Oppo A3s can be used to overcome some software problems on Oppo A3s phone, to direct it you can use a flasher box that has direct isp feature support and usually the flasher box can also be used for repairing emmc like Easy Jtag, Ufi, etc.

    Before removing or replacing IC eMMC you should do Direct eMMC first, still, discuss a little about and pinch, it turns out the partitions don’t match. for eMMC, use KMKJS, use the new boss, don’t use the 2nd one, what is 2nd, 2nd is the second boss of the former emmc who died or asks for TP because of the UFI BOX there support TP eMMC Samsung brand we can’t mention one by one because there are many from that by the eMMC owner the TP was revived and sold at a cheap price.

    Oppo A3s ISP (EMMC) Pinout

    Okay, just follow this Direct eMMC Oppo A3s Pinout, please download

    Oppo A3s ISP EMMC Pinout For Flashing And Remove FRP Lock

    OR

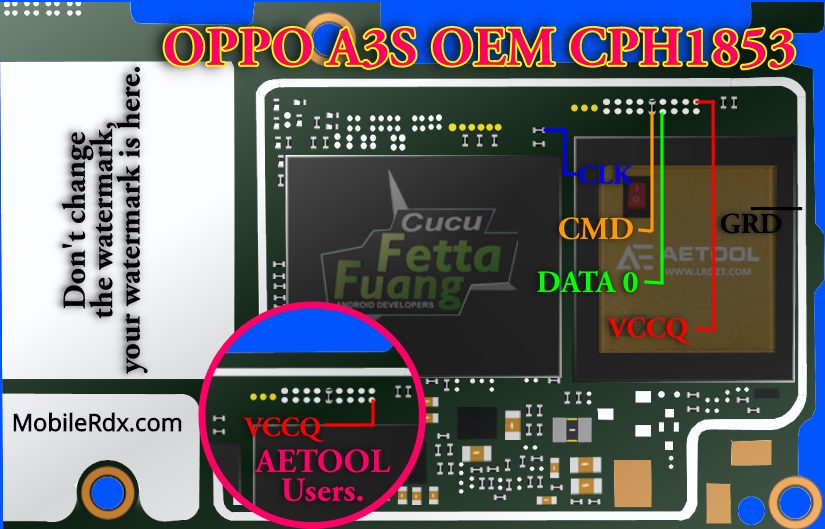

    Oppo A3s OEM CPH1853 ISP EMMC Pinout

    So that later when you want to direct again you are not confused looking for the Direct Pin, please boss just save it on HDD boss so that at any time there are cases that can be used again, congratulations, try the boss. one, please jumper for VCC VCCQ CLK CMD D0 GND for GND or ground don’t forget the jumpers are also bosses, otherwise, the jumpers don’t connect later.

    Read More:-  Realme 3 ISP (EMMC) Pinout - Dead Boot Repair, Remove FRP, Pattern

    Clear User Lock, you can try using ISP method via UFI eMMC ToolBox, use “Factory Reset” under Special Task in User Partition Tab.Or using AETOOL by MRTkey (Android Emmc Tool)
