Samsung SM-J720F Battery Connector Problem Ways Solution


Samsung J720F Battery Connector Problem Ways Solution

Samsung SM-J720F  Battery Connector Ways Power Problem Solution USB Ways USB Jumper Charging Solution Not Charging Problem Charging Ways Charging Jumper

Samsung Galaxy J7 Duo J720F Battery Connector Problem Repairing Solutions are available in the following article. also, you will find Connector Ways and Jumpers information in the diagrams further in this article. If your cell phone is having one of these faults check these diagrams out and do the solutions step by step.

If your Samsung J720F Battery Connector is damaged somehow by whether mishandling or any other reason you can always replace it with a new one. But if you have damaged the battery Connector prints meaning Connection points on which The Battery Connector is soldered to the Samsung Galaxy J7 Duo J720F Battery Connector Ways PCBA Motherboard no need to worry, Diagrams on the end of this article can help you.

Continue with the following repairing solutions and make the necessary jumpers to the points that have been damaged.

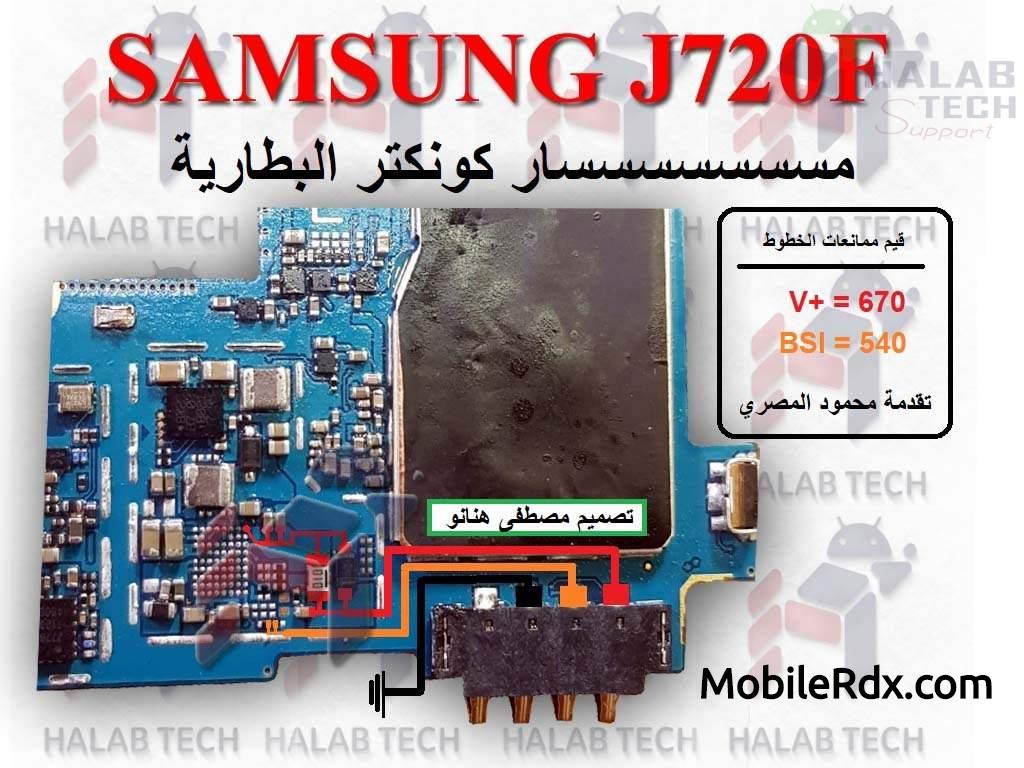

Samsung SM-J720F Battery Connector Ways:

Samsung SM J720F Battery Connector Problem Ways Solution

Image Source:

How to Fix Samsung Galaxy J7 Duo SM-J720F Not Charging Problem

There are several factors creating charging issues on your Samsung J720F. Here we have shared complete solutions to fix the issue.

Before proceeding, ensure that the battery and the battery charger are in good working condition.
– Check all the components shown in the image below, you may start by checking the USB pin connector.
– Then the fuse, diode, capacitors and filter coil for possible open or short circuits.
– Trace each of the connection line paths from USB pins down to the components where it is directly connected.

Read More:-  Repair Samsung Galaxy A12 Network Problems | Network Ways

Some of the other most common causes of the problem of the charger on the Xiaomi Mi 3 not working may be the following, including the Lenovo Vibe P1 not charging – gray battery problem:

  • Bent, broken or pushed in connectors on the device or battery.
  • The phone is defective.
  • Damaged battery.
  • Defective charging unit or cable.
  • Temporary phone problem.
  • The phone is defective.

If the charging is slow then all you have to do is to check with any other Samsung charger, but you have to make sure that the charger is original, as slow charging issues almost always occur with phones using 3rd party chargers.
Clean battery charging pins and check.
Clean charging connector pins.

Please note that we will edit these solutions or add new ones if found on this page at any time in the future. So feel free to come back any time on this page to stay up to date.

If you have any further Questions please leave a message or Chat with us.

Keep in mind: – The every solution posted on Our website is well tested before by our specialist team, But still, we do not take any responsibility for any damage it may cause to your cell phone. Use these repairing solutions at your own Risk, Thank you.
