Redmi 6A Power Key Ways Power Button Jumper Solution

0

If you are a mobile technician and searching for the solution on how to repair the Redmi 6A Power Key Ways power button not working problem here we will show you how to repair the Xiaomi Redmi 6A power key problem and set mot power on problem.

Here are the connection line paths for Xiaomi Redmi 6A |that may useful in troubleshooting a not working Power button switches. This shows the connection line paths (jumper ways), especially when trying to fix the button switch if severely damaged or the PCB solder pads have been already lifted.

You may use a multimeter to trace each of the volume button keys terminals connection across to a component where it is being connected. This solution may also work with Redmi 6A phones.

Redmi 6A Specification

The Redmi 6 is a budget smartphone from Xiaomi. It sports a 5.45-inch display with HD+ resolution. Powering the phone is a MediaTek Helio P22 processor and 3GB of RAM. There are two storage variants of the smartphone and users can choose between 32GB and 64GB of storage. It runs MIUI 9.6 on top of Android 8.1 Oreo. The Redmi 6 has a 12-megapixel primary camera and a 5-megapixel depth sensor. It has a 5-megapixel selfie shooter. It is powered by a 3000mAh battery and is a dual-SIM device with support for 4G on both slots.

Problems

  • Xiaomi Redmi 6A not turning ON.
  • Phone heats up even when power is turned OFF, and also it does not power ON.
  • Randomly Powers OFF itself.
  • Phone turns OFF when any specific application is accessed.
Read More:-  Redmi Note 8 Power Key Way Volume Button Jumper Solution

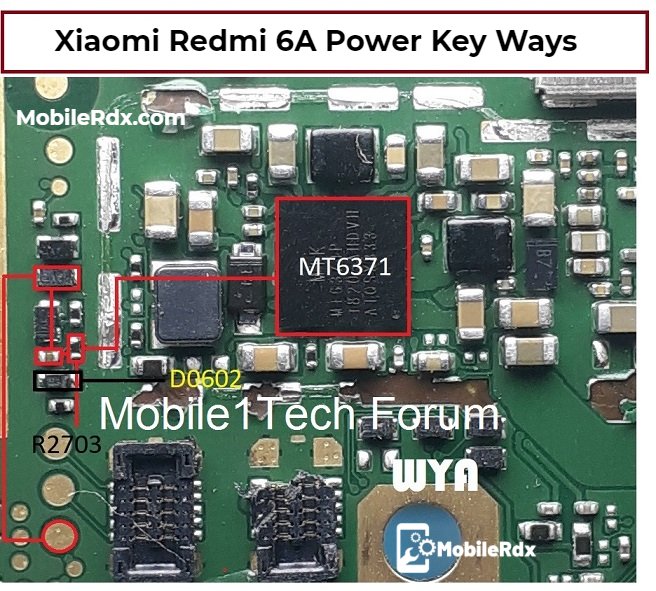

Redmi 6A Power Key Ways And Power Button Jumper:

Redmi 6A Power Key Ways Power Button Jumper Solution

To fix this problem you may first visually check the button switch assembly for possible damaged. Just replace it, and carefully re-solder it without lifting the PCB board terminal solder pads.

If the said switches assembly seems okay but it still it does not respond or work. Refer to the solution above and locate the highlighted component on the PCB board.

If any of the on/off switch + or – track missing then make a jumper.

The very first thing that you need to do is to check battery voltage at its terminals in order to verify whether the problem is with the battery or with anything else. (Battery voltage should be at least 3.8V). If the battery voltage is lower than 3.8V or is not showing charge then it means you need to change your battery in first place and check.

Redmi 6A Power Key Ways, On-Off Switch Jumper, Set Is dead Problem, Power Key Ways

If you have further Questions please leave a comment.

Note: Please note that even though every solution posted on our website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
