Xiaomi Redmi S2 Charging Ways USB Jumper Solution

0

looking for Xiaomi Redmi S2 charging problem solution usb charging ways how to repair Redmi S2 charging problem then you landed at the right place here you fill find full detail diagram of Xiaomi Redmi S2 charging ways , battery connector jumper and charging solution.

Being unable to charge your phone can be frustrating. If your Xiaomi Redmi S2 is not charging, find out the troubleshooting steps that you can try below.

Before we proceed, we want to remind you that if you are looking for solutions to your own #Android issue, you can contact us by using the link provided at the bottom of this page. When describing your issue, please be as detailed as possible so we can easily pinpoint a relevant solution. If you can, kindly include the exact error messages you are getting to give us an idea where to start. If you have already tried some troubleshooting steps before emailing us, make sure to mention them so we can skip them in our answers.

How to repair Xiaomi Redmi S2 charging problem

Looking for solutions to your Samsung Galaxy J5 Prime G570M charging issue? This post should help. Follow our suggestions below to address the problem.

Redmi S2 charging solution: Check for hardware damage

If you find your Xiaomi Redmi S2  not charging, the first thing that you want to ask is: was the device physically damaged? One of the results of accidentally dropping or hitting a phone is failure to charge. If this problem occurred right after your device was dropped, hit by something hard, or exposed to liquid or water, it’s possible that repair may be needed. If the screen is cracked or if there’s an obvious sign of hardware damage, we suggest that you visit Samsung or contact them for repair.

Read More:-  Redmi 6 Pro Mic Problem Ways Solution - Microphone Jumper

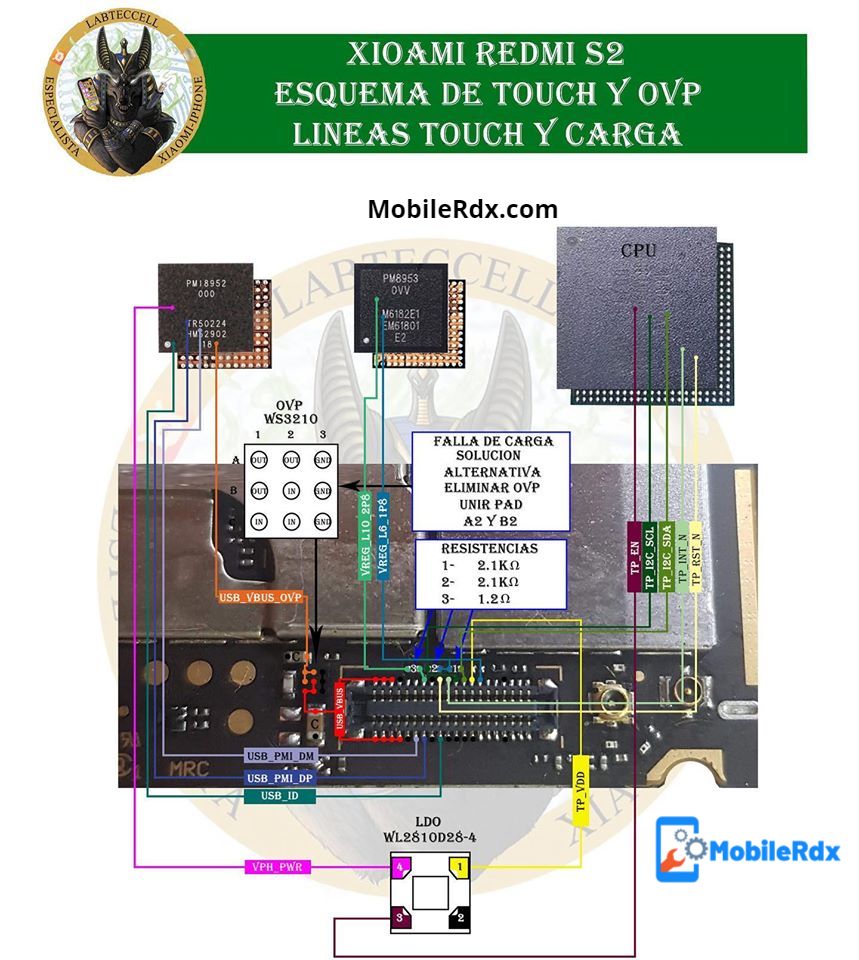

Xiaomi Redmi S2 Charging Ways Problem Solution – USB Jumper

Xiaomi Redmi S2 Charging Ways USB Jumper Solution

Check Charging connector for any kind of water damage, if it is then clean it and check.

Now re-solder charging connector pins and check.

Check to charge voltage with the help of a multimeter. Place the Negative terminal of the multimeter on the ground and Positive on a charging pin (1st pin from your left-hand side).

Make sure that the voltage is between 5V to 5.5V, if it is not then replaced charging connector. (Charging Connector can be replaced by heating it from the opposite side of the board, while heating it, pull charging connector with the help of Tweezers).

Now remove metal sheet covering the charging section (It contains Charging IC and Components).

Check continuity between Fuse and Charging Pin (1st from your left-hand side). If there is no continuity, place jumper.

Also, check the following, and replace them if damaged:
Fuse
Capacitor
Coil

Heat charging IC, if it is faulty then replace it.

Now check charge at the battery terminals, if it is not standard voltage then re-solder or replace battery terminals.

Potential Fixes For Xiaomi Redmi S2 Charging Issue

There could be several reasons for Xiaomi Redmi S2 Charging issue, and the solutions are listed below: You can also read battery saving tips for Android devices to extend the battery life of your device.

Step 1: Use the correct charger

Step 2: Let the device charge for a while before using it

Read More:-  Repair Xiaomi Redmi Note 3 Pro Display Backlight Problem

Step 3: Fix USB port

Step 4: Change the cable

Step 5: Clean the port

Step 6: Check battery
