    Xiaomi Hardware

    Xiaomi Redmi 5 Plus Backlight Way LCD Light Solution

    By Mobile RdxMay 12, 2020

    The solution in this post is for Xiaomi Redmi 5 Plus Backlight Ways and Display light problem jumper solution full LCD ways display connection line paths in case you are going to troubleshoot display problem such blank display, dark screen display, white screen (with tones), No backlight LED that is resulted from due to wet damaged or accidentally dropped issues by the users.

    Xiaomi Redmi 5 Plus Backlight Problem is a typical case; surely this will be the moment when we use a lot of activities using an Android phone device, in this opportunity MobileRdx Team try to discuss and Provide a repair solution on Android device Xiaomi Redmi 5 Plus no backlight. Maybe some of you have the same obstacles and damage on Android phones Xiaomi Redmi 5 Plus that have no light on the display or its LCD

    Following are some of the Xiaomi Redmi 5 Plus Backlight problems that you might encounter:

    Problems

    • White Display
    • No Display
    • Lines on Display
    • Low Light on Display
    • No Backlight

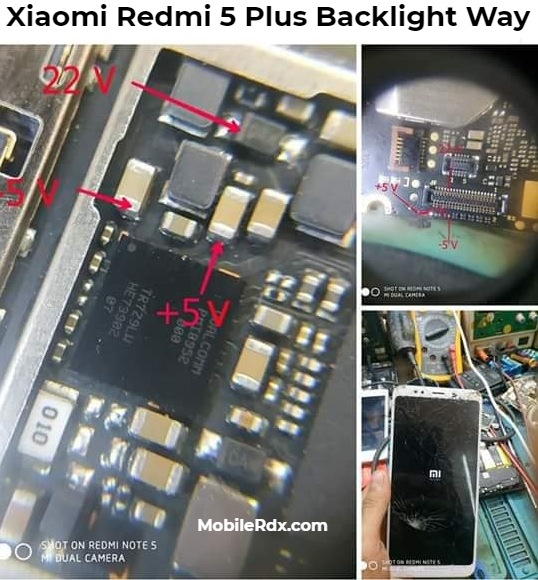

    Xiaomi Redmi 5 Plus Backlighy Ways – LCD Light Jumper Solution

    Xiaomi Redmi 5 Plus Backlight Way Display Light Solution

    To fix the dark screen Xiaomi Redmi 5 Plus Display Backlight way display problem, you may first try to replace or install a new Display screen module, to easily confirm if the LCD’s backlight LED’s were still working or already damaged. You can also check the LED’s using the multimeter if you can manage without damaging the LCD flex connector. If the newly installed LCD still shows the same problem, and the LED light doesn’t light up, refer to the solution below, and locate the highlighted components on the PCB board.

    Read More:-  Redmi 6 Display Light Problem Solution LCD Light Ways

    How To Repair Xiaomi Redmi 5 Plus Backlight Way Problem:

    “Note: Ensure that the Xiaomi Redmi 5 Plus Lcd is okay or try replacing it before proceeding.”

    1. Check the LCD pin connector for possible damaged, resolder if necessary.

    2. Trace each of the LED + (positive and LED – (negative connection line paths down to the resistors where it is being connected.

    3. Check the connected resistor, replace if found damaged.

    4. Check the pin connector assembly and ensure to clean it as well.

    5. Check the display filter resistors including the LCD supply voltage and trace the connection tracks to the LCD pin connector.

    Replace the damaged resistor or mind to reconnect if there is an open line path.

    If you have further questions, please don’t hesitate to leave a comment.

    Note: Every repairing solution posted here was tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.
