Huawei Y7 Prime 2018 LDN-L21 ISP Pinout Ways

0

ISP Pinout for the Huawei Y7 Prime 2018 LDN-L21 and EMMC Point that can be used to Directly Read and Write the EMMC Memory by using the Supported box Like UFI & Easy Jtag. The EMMC Pinout image we share below is a tested file and fully working with UFI Box.

Remove Pattern Lock, Screen Lock, Finger Lock in Huawei Y7 Prime With UFI Box you can easily solve with this method if you are fresher technician or experienced technician in android software related if the error occurs of USB not recognized then your USB is not working.if a battery is not charged, your USB socket will not properly work and you will fail in this method. if any issues please write your questions in the comment box I will try my best to help you.

Huawei Y7 Prime 2018 Overview

Huawei Y7 Prime 2018 smartphone was launched in March 2018. The phone comes with a 5.99-inch display with a resolution of 720×1440 pixels. Huawei Y7 Prime 2018 is powered by a 1.4GHz octa-core Qualcomm Snapdragon 430 processor. It comes with 3GB of RAM.

Huawei Y7 Prime 2018 runs Android 8.0 Oreo and is powered by a 3000mAh battery. As far as the cameras are concerned, the Huawei Y7 Prime 2018 on the rear packs 13-megapixel camera. It sports a 8-megapixel camera on the front for selfies.

What is ISP Or eMMC Pinout?

ISP orIn-system programming also known as in-circuit serial programming for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile. The eMMC solution consists of at least three components – the MMC (multimedia card) interface, the flash memory, and the flash memory controller – and is offered in an industry-standard BGA package.

Read More:-  Oppo A31 ISP Pinout For Remove Userlock And Bypass FRP

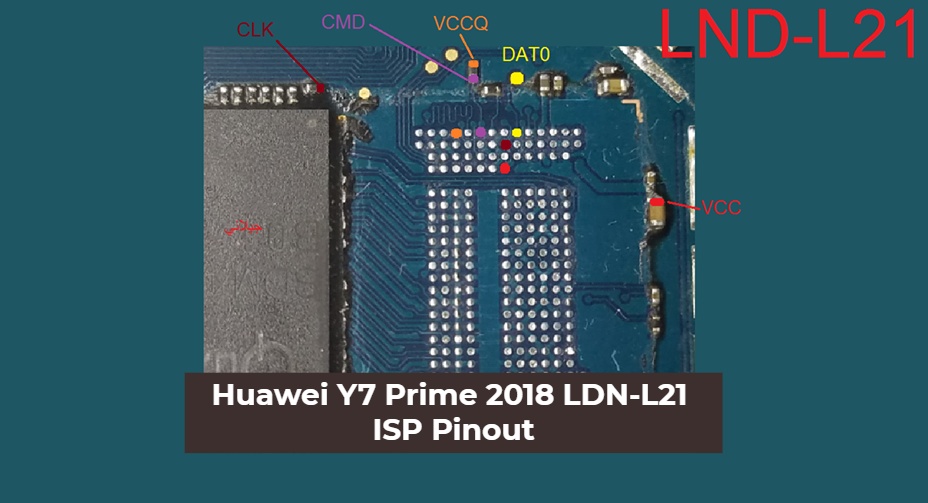

Huawei Y7 Prime 2018 LDN-L21 ISP Pinout Image

Huawei Y7 Prime 2018 LDN L21 ISP Pinout Ways

Usage of ISP Pinout :

Read/Write EMMC via ISP.
Read/Write EMMC via direct connect (EMMC installed in socket).
One-click boot repair via direct emmc connection.
Read MMC info (Many usefull info there such as read/write counter, error counter, etc)
Factory EMMC formatting.
Low EMMC formatting.
Master/Slave partition activation
EMMC smart repartition.
EMMC partition cloning.

How To Remove Huawei Y7 Prime 2018 LDN-L21 Pattern FRP Using UFI Dongle:

  • Remove the back panel of the device and connect the wire to the ISP Pinout.
  • Next, connect the correct ISP Pinout to the UFi Box
  • Check “Direct eMMC (ISP)”
  • Then Click on “Identify eMMc.
  • Connect your Huawei Y7 Prime 2018 LDN-L21 to the PC via a USB cable.
  • Head over to the PC and open Device Manager.
  • If your device is located there, run the UFi Box.

UFI EMMC User Partition

  • Go to USERAREAPART
  • Now Click on Special Task ► [Oppo] MasterClear ► Wipe Data Only
  • Now Click on Special Task ► Clear FRP Lock
  • Done.
