    Samsung Galaxy A20s A207F ISP Pinout To ByPass FRP And Pattern Lock

    By Mobile RdxJuly 19, 2020

    Hello, Mobile technicians Samsung Galaxy A20s A207F Isp Pinout for Remove Pattern Lock Bypass FRP Lock is now available. You can easily get the ISP Pinout connection of the Samsung Galaxy A20s A207F by following the full guide below along with images. By using the ISP Pinout, you can easily bypass FRP lock or reset user data on your device via UFi Box. Check out the guide below.

    The Samsung Galaxy A20s A207F  can be used to overcome some software problems on Samsung A207F phone, to direct it you can use a flasher box that has direct isp feature support and usually the flasher box can also be used for repairing emmc like Easy Jtag, Ufi, etc.

    Remove Pattern Lock, Screen Lock, Finger Lock in Samsung Galaxy A20s A207F with UFI Box you can easily solve with this method if you are fresher technician or experienced technician in android software related if the error occurs of USB not recognized then your USB is not working. if a battery is not charged, your USB socket will not properly work and you will fail in this method. if any issues please write your questions in the comment box I will try my best to help you.

    What is ISP Pinout?

    ISP means “In-System Programming”.In-System Programming (ISP) allows communication to take place with a target chip without the need to remove it. The main advantage of this method is the possibility to communicate with a target chip eMMC or eMCP bypassing the CPU. It brings higher speed for data extraction compared with JTAG but it requires great soldering skills. ISP applied to forensics, is the practice of connecting to an eMMC or eMCP flash memory chip for the purpose of downloading a device’s complete memory contents.

    Read More:-  Samsung Galaxy A52s A528B Test Point to Remove Pattern, FRP And Flashing

    Why do we need ISP Pinout?

    Just Like “Joint Test Action Group (JTAG)” there are specific contacts that will be of interest to the examiner. But unlike JTAG, the contacts are directly off the chip BGAs and do not go through the processor. Acquires data much faster than JTAG, enabling examiners to process more phones faster.

    CMD
    CLK
    DATA0
    GND
    VCC – Voltage Supply for Core (3,3V)
    VCCQ – Voltage Supply for I/O (1,8 – 3,3V)

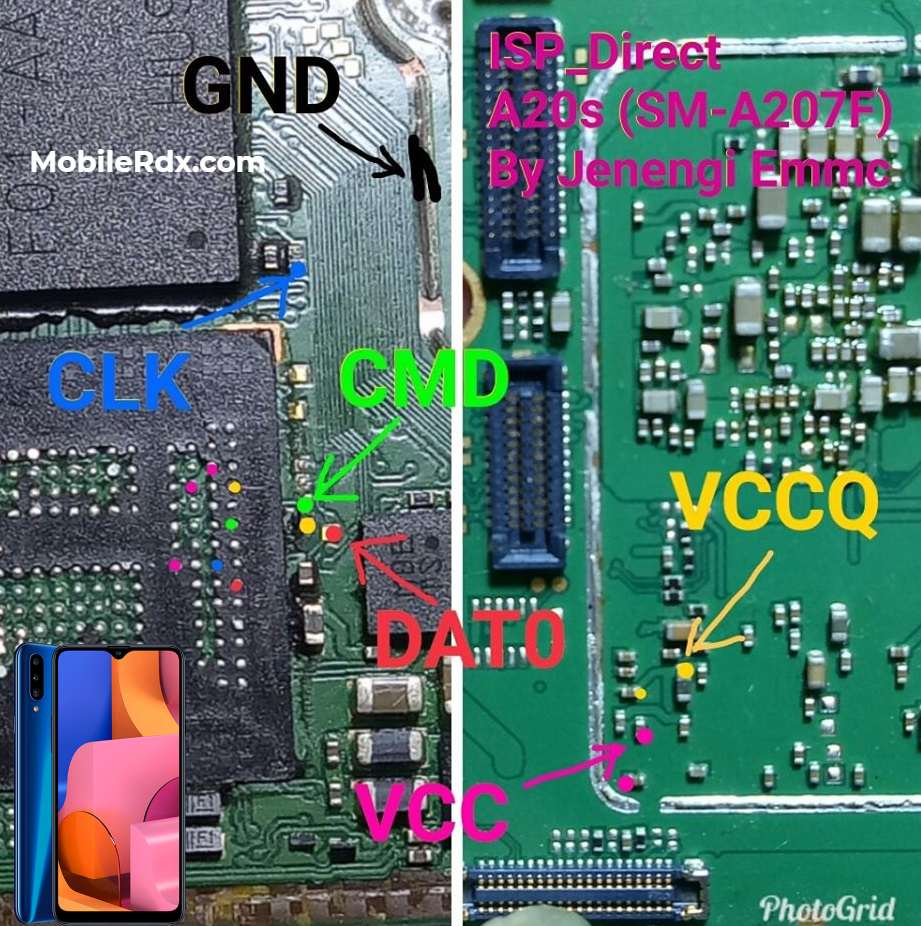

    Samsung Galaxy A20s A207F ISP Pinout Image:

    Samsung Galaxy A20s A207F To ByPass FRP And Pattern Lock

    Samsung Galaxy A20s A207F repair dead boot or any brand phone you need two dongles best in the market one is easy jtag plus and another is ufi box both are best in the market. those boxes help some phone after flashing wrong firmware not show booting on-screen.this you need those boxes for boot repair. some brands, not possible lock remove like a pin, pattern, password, FRP, and MDM lock this really supports for remove locks.

    Requirement Tools

    Microscope
    Miro Solder
    Solder Paste
    0.1mm Copper Wire
    eMMc Flash Box (Easy JTAG Plus,Ufi Box,Medusa Pro,Etc)

    How To Remove Samsung Galaxy A20s A207F User Lock FRP Using UFI Dongle:

    • Remove the back panel of the device and connect the wire to the ISP Pinout.
    • Next, connect the correct ISP Pinout to the UFi Box
    • Check “Direct eMMC (ISP)”
    • Then Click on “Identify eMMc.
    • Connect your Samsung Galaxy A20s A207F to the PC via a USB cable.
    • Head over to the PC and open Device Manager.
    • If your device is located there, run the UFi Box.
    Read More:-  Samsung Galaxy M21 UFS ISP Pinout to ByPass FRP User Lock and Flashing

    UFI EMMC User Partition

    • Go to USERAREAPART
    • Now Click on Special Task ► [Oppo] MasterClear ► Wipe Data Only
    • Now Click on Special Task ► Clear FRP Lock
    • Done.
