Samsung Galaxy A51 UFS ISP Pinout to ByPass FRP User Lock
Here you will get the direct connection of Samsung Galaxy A51 A515F/A515FN UFS ISP Pinout and its Ways, by using this pinout you can do UFS chip Programming Flashing remove Samsung Galaxy A51 user lock FRP reset, write UFS dump.
You can easily get the UFS ISP Pinout connection of the Samsung Galaxy A51 A515F by following the full guide below along with images. By using the ISP Pinout, you can easily bypass FRP lock or reset user data on your device via EasyJTAG Plus Box, or any other tool. Check out the below guide.
What is UFS ISP Pinout?
ISP means “In-System Programming”.In-System Programming (ISP) allows communication to take place with a target chip without the need to remove it. The main advantage of this method is the possibility to communicate with a target chip UFS bypassing the CPU. It brings higher speed for data extraction compared with JTAG but it requires great soldering skills. ISP applied to forensics, is the practice of connecting to a UFS or eMCP flash memory chip for the purpose of downloading a device’s complete memory contents.
Samsung Galaxy A51 Repair Dead boot, Flashing, remove FRP lock or any brand phone you need EasyJTAG Plus it is the only one box in the market which support the UFS chip. those boxes help some phone after flashing wrong firmware not show booting on-screen.this you need those boxes for boot repair. some brands, not possible lock remove like a pin, pattern, password, FRP, and MDM lock this really supports for remove locks.

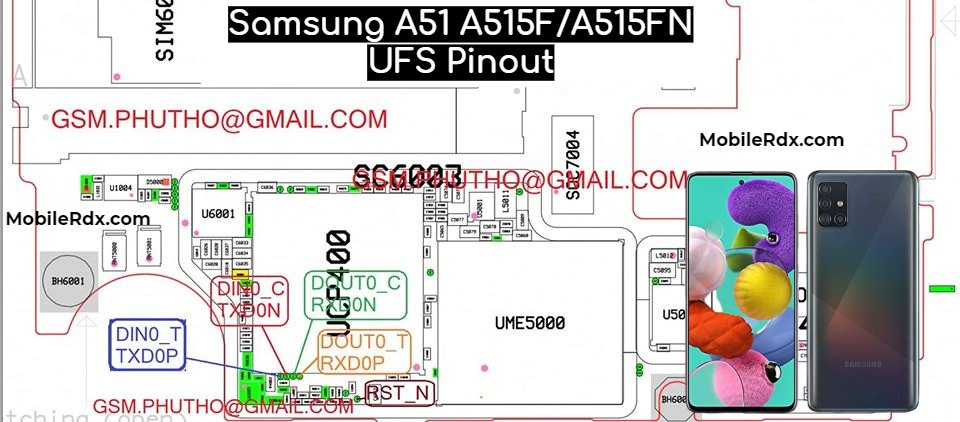

Samsung Galaxy A51 A515F UFS ISP Pinout Image
- Samsung Galaxy A51 with Good Charge Battery
- Easy Jtag box with adapter
- Micro USB Cable
- Computer or Laptop
Samsung Galaxy A51 FRP Lock Using EasyJTAG Plus:
- Remove the back panel of the device and connect the wire to the UFS ISP Pinout.
- Next, connect the correct UFS ISP Pinout to the EasyJTAG Plus box
- Check the “UFS” tab
- Then Click on “Identify UFS Chip.
- Connect your Samsung Galaxy A51 to the PC via a USB cable.
- Go to Preset Select Persistent
- Now Click on Erase LUN0 Data
What Is Samsung Galaxy A51 UFS Chip?
Universal Flash Storage (UFS) is an advanced, high performance interface designed for computing and mobile systems such as smartphones and tablets where power consumption needs to be minimal.
The major differences between eUFS/UFS Card over the older signaling architecture based eMMC/SD cards are its high speeds and low power serial interface with high reliability.
In light of the UFS’s high performance and reliability, Samsung has seen adoption in the mobile market. Samsung will continue to satisfy the growing storage needs of the industry by offering a variety of advanced UFS lineups, while more thoroughly addressing the ever-increasing demand for leading-edge memory solutions in other market segments, too.
About Easy JTAG Plus Box and UFS Memory Chip.
EasyJTAG Plus box supports UFS memory connection and basic operations like. Identification, Multiple LUN access, Reading , Writing, and access to UFS Memory attributes, configs etc as well. Current operations speed is limited to 1.5Mb/sec and will be increased in next firmware versions. Minimal firmware for UFS access is 2.35. There is impossible to gain UFS support with old hardware revisions ( 1.xx firmwares ). UFS Functions did not requires any additional activation and available soon in EasyJAG Classic suite. For connecting UFS chip user need to buy an EasyJTAG UFS socket for necessary memory chip. Currently exists 3 BGA memory types
