How To Repair Samsung Galaxy A30 Charging Paused Problem
Hello, mobile technician here is the full solution of Samsung Galaxy A30 A305G Charging paused battery temperature is too low problem repair solution in the below diagram you will find which thermometer is giving Samsung Galaxy A30 A305 Charging Paused Problem simply change the thermometer on by one and repair Samsung A305G Charging Paused Problem.
Samsung Galaxy A30 charging paused problem is known to be the most common one, and this is mainly because of the fact that a little bit of physical damage or water damage to the charging connector pin is enough to trouble with your phone’s charging connector. However, there could also be other reasons of this problem like a faulty charger or phone’s battery.
If your Galaxy A30 started having a charging paused error out of the blue, the first thing that you need to do is to see if there’s an issue with the charging port or accessories. This error can sometimes be caused by a faulty USB cable or adapter so if you haven’t checked yours yet, be sure to do so now. You can do that by using another official Samsung cable and adapter or charging another Samsung device using the current ones. Either way should help you tell if there’s a problem with your accessories.
Also, try to see if there’s any dirt, lint, debris, or foreign object in the charging port that may block the charging cable. The presence of dirt or debris in the port is the usual reason why charging may be unsuccessful. If you think that the port is dirty and it causes the charging paused problem, clean the port using a can of compressed air. Avoid sticking anything in the port to not damage the system.
Samsung Galaxy A30 A305G Charging Paused Problems
- Charging Paused Massage
- Battery Temperature Too Low.
- Samsung Galaxy A30 heats up during charging.
- No response when the charger is connected.
Samsung Galaxy A30 A305G Charging Paused Problem Repair Solution:
The Problem is the charging paused or we called a thermistor.
so you need to remove the thermistor or replace it from the other board.

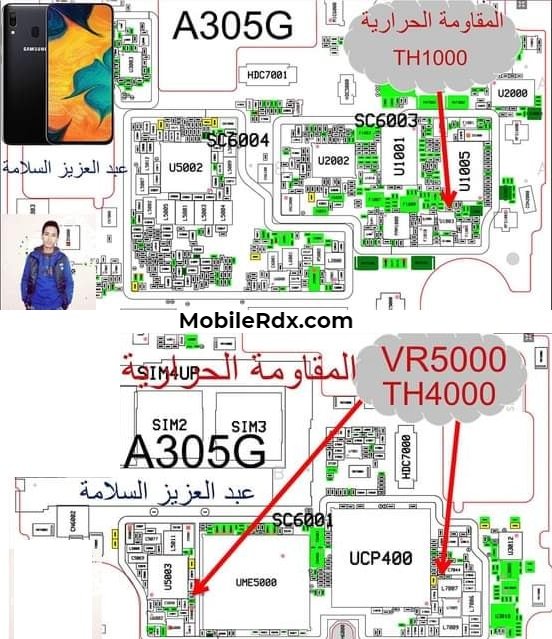

Just Follow the Picture Shown Below.
In order to overcome the water damage problem, all you have to do is to:
Clean charging dock strip and check.
If the problem persists or if the pins are damaged then you need to replace the entire charging dock strip.
Now check the voltage of 1st pin (from right) of charging connector with the help of a Multi-Meter, if there is a problem then re-solder charging pin.
Now check voltage at the capacitor, if it is zero then check whether it is short or not if it then changes the capacitor. If not then:
Check the connection between the charging pin and Capacitor, if the connection is broken re-solder it or place a jumper.
The charge is provided to the Samsung Galaxy A30 board via Capacitor.
