Samsung Galaxy A02 A022F EMMC ISP PinOUT

0

By using the Samsung Galaxy A02 A022F EMMC ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, Remove MDM Passcode Lost Mode (Device Lock, No Downloads Mode, No Recovery), and Remove FRP Direct by Easy Jtag Plus Or UFI Box. In this guide, we will show you the tested and working image of the UFS pinout and test point for the Samsung Galaxy A02 SM-A022F.

TheSamsung Galaxy A02 can be used to overcome some software problems on Samsung Galaxy A02 A022F phone, to direct it you can use a flasher box that has direct isp feature support and usually thae flasher box can also be used for repairing emmc like Easy Jtag, Ufi, etc.

Remove Pattern Lock, Screen Lock, Finger Lock in Samsung Galaxy A02 with UFI Box you can easily solve with this method if you are fresher technician or experienced technician in android software related if the error occurs of USB not recognized then your USB is not working.if a battery is not charged, your USB socket will not properly work and you will fail in this method. if any issues please write your questions in the comment box I will try my best to help you.

Samsung Galaxy A02 Overview

What is Samsung Galaxy A02 ISP Pinout?

ISP means “In-System Programming”.In-System Programming (ISP) allows communication to take place with a target chip without the need to remove it. The main advantage of this method is the possibility to communicate with a target chip eMMC or eMCP bypassing the CPU. It brings higher speed for data extraction compared with JTAG but it requires great soldering skills. ISP applied to forensics, is the practice of connecting to an eMMC or eMCP flash memory chip for the purpose of downloading a device’s complete memory contents.

Read More:-  Samsung Galaxy A10s A107F ISP Pinout EMMC Ways

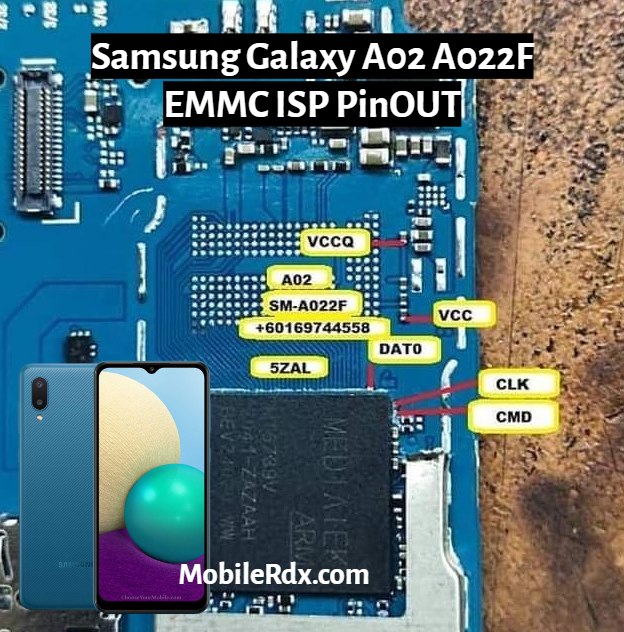

Samsung Galaxy A02 A022F ISP Pinout Image:

Hardware Process:
  1. You need to take the rear case away from your phone. Next, unplug the motherboard from the existing battery, fingerprint sensor, and camera.
  2. Unscrew the screws from the motherboard and take it out and put it in a safe place.
  3. On your motherboard, locate the six eMMC pins. The pins are Dat 0, CLK, CMD, GND, VCC, and VCCQ. You will require to cut through the steel cover to reveal them.
  4. Bring the UFI box and take the adapter out from it. You will see the exact same pins in the adapter I have mentioned in the previous step.
  5. Solder the 4 pins: Dat0, CLK, CMD, and GND with jumpers between the motherboard and the adapter. Left the VCC and VCCQ for the USB to power them out.
  6. Put the adapter inside the UFI box. Connect the box to the computer.
  7. Connect the motherboard to the phone’s battery. Then, put the USB cable on the phone and connect it to the computer.

Samsung Galaxy A02 A022F EMMC ISP PinOUT

Samsung Galaxy A02 repair dead boot or any brand phone you need two dongles best in the market one is easy jtag plus and another is ufi box both are best in the market. those boxes help some phones after flashing the wrong firmware not show booting on-screen. this you need those boxes for boot repair. some brands, not possible lock remove like a pin, pattern, password, FRP, and MDM lock this really supports for remove locks.

How To Remove Samsung Galaxy A02 FRP Lock Using UFI Dongle:

  • Run the UFi Box software.
  • Check “Direct eMMC (ISP)”
  • Now, Click on Identify eMMC. It will recognize your device by the software to take further
  • Go to the User Partition tab, and click on the Special Task. Select Factory reset from the list of options.
Read More:-  Redmi Note 8 EMMC ISP Pinout For Remove MI Account And FRP

UFI EMMC User Partition

  •  Put away all the connections and assemble your phone back to its previous condition. Turn on your phone and enjoy
  • Done.
