Samsung Galaxy A10 Charging Ways | Repair Not Charging Problem
In this post, I will deal with the Samsung Galaxy A10 A105 not charging problem, Charging Ways, USB Jumper Solution since charging is one of the most important processes that need to work no matter what. This phone has a monster battery (3400 mAh) and it could last for a few days if used for texting, calling, and browsing. But such hardware will be rendered useless if the device won’t charge. So, let’s try to take a closer look into this problem to know if there’s something we can do about it.
Samsung Galaxy A10 Charging problems are often complicated as it may be due to an issue in the hardware or perhaps, the firmware is having some problems as well. The most challenging part is to determine which is which and that’s what this post is all about. Before we proceed with the steps, try to read one of the problems that best describes this issue.
Hardware Reasons for Samsung Galaxy A10 Charging Problem
There are four basic hardware-related reasons that your Samsung Galaxy A10 A105 could be charging slowly, and I will explain each of them in turn and in order of increasing probability. The issue could be:
- There is dirt, dust, or debris lodged in the charging port.
- The power adapter is damaged or faulty.
- The USB cable is no longer working properly.
- You are using the wrong power adapter for your phone, or a weak USB port.
You can download Samsung Galaxy A10 Schematic Diagram from Here
Samsung Galaxy A10 Charging Ways – USB Charging Problem Solution

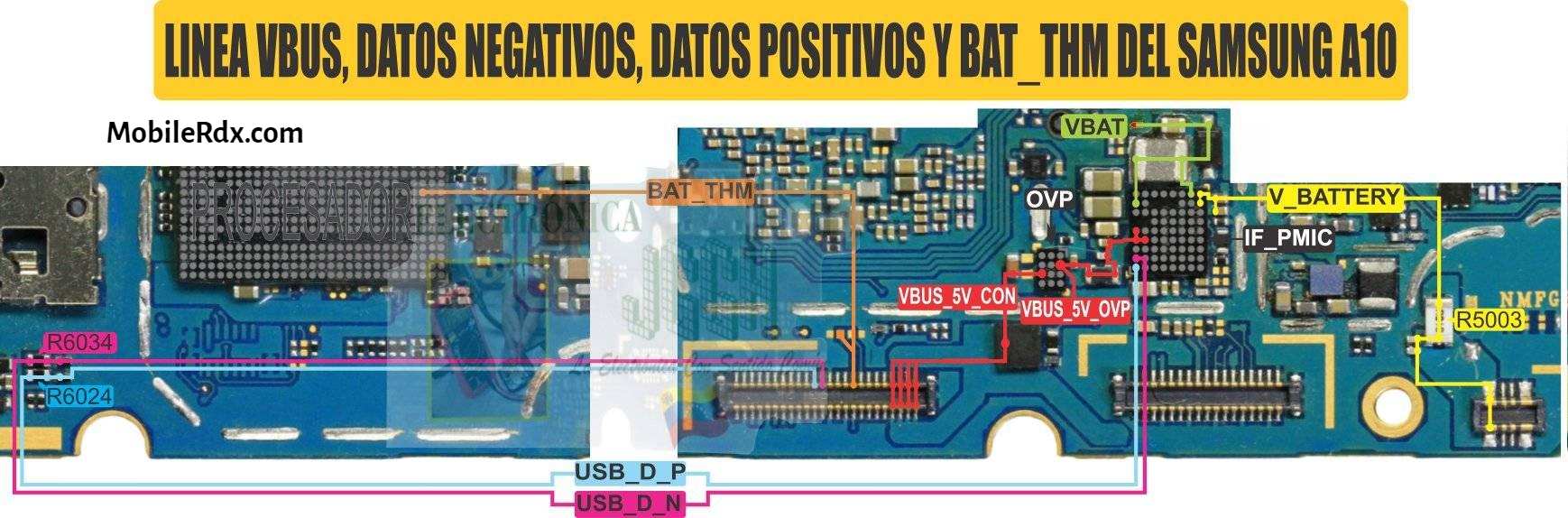

In the below image we draw the Samsung Galaxy A10 charging ways and its jumper check continuity using a multimeter if any track damage makes a jumper on the Samsung Galaxy A10 motherboard.
- First, open the mobile
- Then clean the section of the charging connector of the mobile motherboard
- Then remove the old charging connector and add a new connector
How To Repair Samsung Galaxy A10 Not Charging Problem:
Samsung Galaxy A10 A105 Charging Ways Charging Jumper Solution Slow Or Fake Charging Solution
After the mobile phone disassembles, you will need to take some steps shown in the diagram above.
Check the Charging jack and its points do they have good value if yes, then change the changer and check it and if the motherboard does not see the accurate value with the charging points, then after the dissatisfaction of the mobile phone you get something shown in the above diagram You have to take steps.
Below are the most common causes of why you Samsung Galaxy A10 have trouble charging, and other problems concerning the battery like the grey battery issue:
- Shorted/faulty diode
- Shorted/faulty capacitors
- faulty resistors
- Bad/damaged charging coil
- Shorted/faulty IC
- Bad USB Port
- Partial contact
If any corrosion or carbon and water damage or any component are damaged, then the motherboard should be replaced carefully. If a track is lost then the jumper is applied and if any part is damaged or broken, replace it with the new one.
