    Samsung Galaxy Note 8 Charging Ways | Repair Charging Problem

    By
    Here we will discuss Samsung Galaxy Note 8 SM-N950 not charging problem, charging ways, and USB jumper, This mobile charging problem does not easily make a bad part, and though it is worse, the charging connector. So this mobile charging problem arises Then first switch the charging connector. And if the problem is not resolved even after the charging connector is changed. If you see the picture that I gave the picture, your jumper. Below I’ll tell you to step by step, how do you solve this problem.



    This mobile charging problem does not easily make a bad part, and though it is worse, the charging connector. So this mobile charging problem arises Then first switch the charging connector. And if the problem is not resolved even after the charging connector is changed. If you see the picture that I gave the picture, your jumper. Below I’ll tell you to step by step, how do you solve this problem.



    Samsung Galaxy Note 8 launched in August 2017. The handset came with Android 7.1.1 Nougat., Talking about the specifications, Galaxy Note 8 features a 6.3-inches display with a screen resolution of 1440 x 2960 pixels. It is powered by Exynos 8895 Octa processor coupled with 6GB of RAM. The phone packs 64/128/256GB internal memory. The camera on the Galaxy Note 8 comes with Dual 12 MP and 8MP front shooting camera. It is backed by a Non-removable Li-Ion 3300 mAh battery with Fast battery charging (Quick Charge 2.0). It also has Iris scanner and fingerprint sensor on the back.

    Samsung Galaxy Note 8 Charging Ways Solution

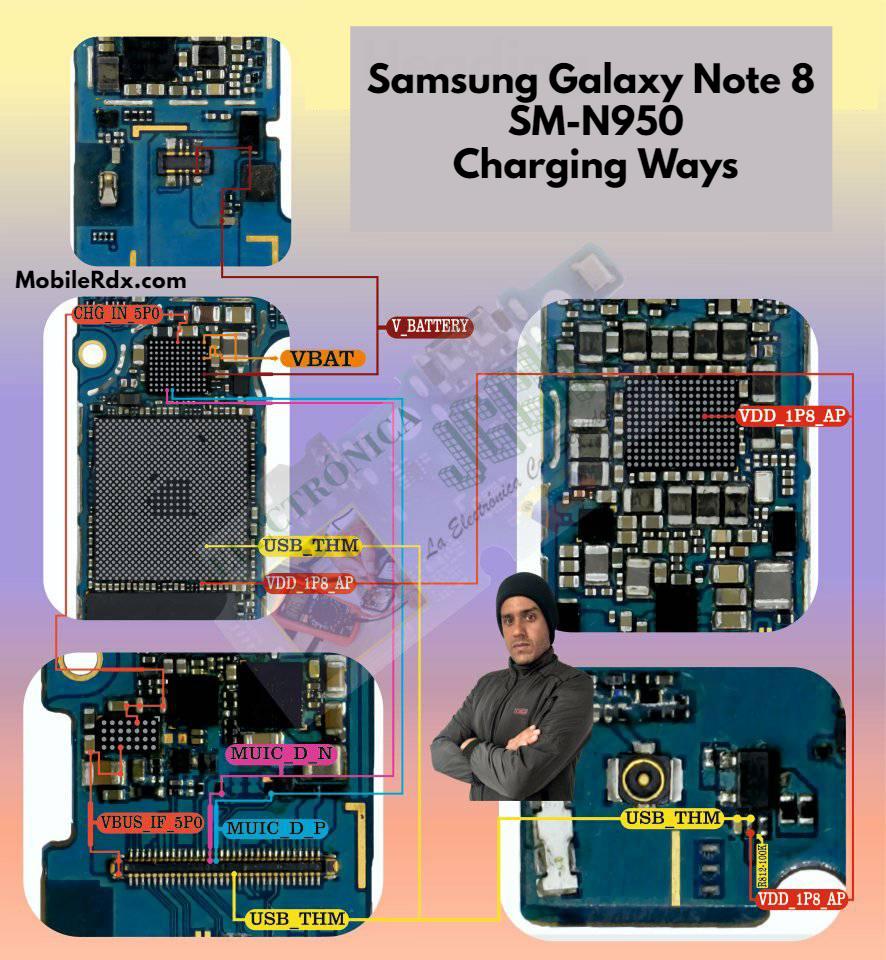

    In the below image we draw the Samsung Galaxy Note 8 charging ways and its jumper check continuity using a multimeter if any track damage makes a jumper on the Samsung Galaxy Note 8 SM-N950 motherboard.

    1. First, open the mobile
    2. Then clean the section of the charging connector of the mobile motherboard
    3. Then remove the old charging connector and add a new connector
    After doing this, but the mobile phone in charge once, After doing these things, if the mobile is solved then fitting the mobile, If the problem is not solved after doing these, then I have given a picture below to do the job.

    Samsung Galaxy Note 8 Charging Ways Repair Charging Problem

    How To Repair Samsung Galaxy Note 8 Not Charging Problem:

    Samsung Galaxy Note 8 Charging Ways Charging Jumper Solution Slow Or Fake Charging Solution

    Read More:-  Samsung Galaxy J5 2017 FRP Lock Remove Solution

    After the mobile phone disassembles, you will need to take some steps shown in the diagram above.

    Check the Charging jack and its points do they have good value if yes, then change the changer and check it and if the motherboard does not see the accurate value with the charging points, then after the dissatisfaction of the mobile phone you get something shown in the above diagram You have to take steps.

    Check the Charging jack and its points are good values if yes, then change the changer and check it and if the motherboard does not see the accurate value with charging points, then you will see all the parts and tracks given in the diagram of Samsung Galaxy Note 8 Are to investigate.

    Below are the most common causes of why you Samsung Galaxy Note 8 have trouble charging, and other problems concerning the battery like the grey battery issue:

    1. Shorted/faulty diode
    2. Shorted/faulty capacitors
    3. faulty resistors
    4. Bad/damaged charging coil
    5. Shorted/faulty IC
    6. Bad USB Port
    7. Partial contact

    If any corrosion or carbon and water damage or any component are damaged, then the motherboard should be replaced carefully. If a track is lost then the jumper is applied and if any part is damaged or broken, replace it with the new one.

    More information about this problem and solutions for new tips and tricks are going to this page, if there are new updates, there will be updates. Below are some related posts, you can read more about mobile phones.
