You can easily get the UFS ISP Pinout connection of the Samsung Galaxy Note 20 Ultra 5G SM-N986B by following the full guide below along with images. By using the ISP Pinout, you can easily bypass FRP lock or reset user data on your device via EasyJTAG Plus Box, or any other tool. Check out the below guide.

Are you trying to flash or remove FRP lock on Samsung Galaxy Note 20 Ultra SM-N986B mobile but getting a working solution? If yes that means you need to use Samsung Galaxy Note 20 Ultra UFS ISP Pinout Because of this, your tools are showing errors during the stock firmware flashing, Remove Locks, and FRP.

By using this pinout you can do UFS chip Programming Flashing remove Samsung Galaxy Note 20 Ultra 5G user lock FRP reset, write UFS dump, MDM lock remove. here you will get the direct connection of Samsung Galaxy S20 UFS ISP Pinout and its Ways,

What is Samsung Galaxy S20 Ultra UFS ISP Pinout?

ISP means “In-System Programming”.In-System Programming (ISP) allows communication to take place with a target chip without the need to remove it. The main advantage of this method is the possibility to communicate with a target chip UFS bypassing the CPU. It brings higher speed for data extraction compared with JTAG but it requires great soldering skills. ISP applied to forensics, is the practice of connecting to a UFS or eMCP flash memory chip for the purpose of downloading a device’s complete memory contents.

Samsung Galaxy S20 Ultra Repair Dead boot, Flashing, remove FRP lock or any brand phone you need EasyJTAG Plus it is the only box in the market that supports the UFS chip. those boxes help some phones after flashing the wrong firmware not show booting on-screen. this you need those boxes for boot repair. some brands, not possible lock remove like a pin, pattern, password, FRP, and MDM lock this really supports for remove locks.

Read More:-  Vivo Y12 EMMC ISP Pinout | Test Point | EDL Mode 9008

Samsung Galaxy S20 Ultra UFS ISP Pinout Image

1: You need to take the rear case away from your phone. Next, unplug the motherboard from the existing battery, fingerprint sensor, and camera.
2: Unscrew the screws from the motherboard and take it out and put it in a safe place.
3: On your motherboard, locate the six eMMC pins. The pins are TxOp, TxOn, RxOp, RxOn. You will require to cut through the steel cover to reveal them.

4: Bring the UFI box and take the adapter out from it. You will see the exact same pins in the adapter I have mentioned in the previous step.
5: Solder the 4 pins: TxOp, TxOn, RxOp, RxOn with jumpers between the motherboard and the adapter. Left the VCC and VCCQ for the USB to power them out.
6: Put the adapter inside the UFI box. Connect the box to the computer.
7: Connect the motherboard to the phone’s battery. Then, put the USB cable on the phone and connect it to the computer.

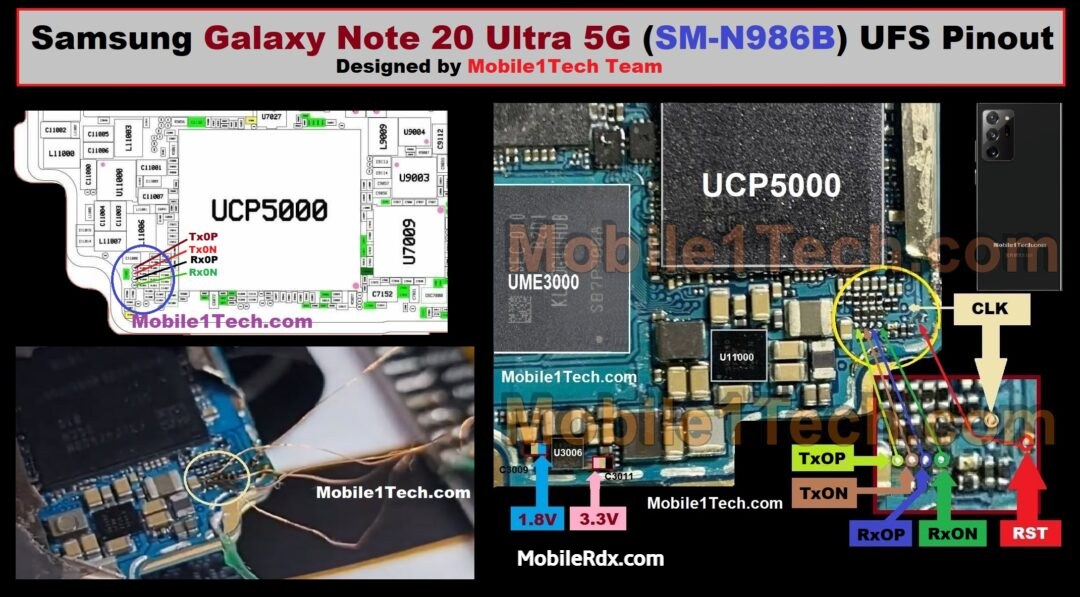

Samsung Galaxy Note 20 Ultra 5G UFS ISP Pinout   Test Point

Required:

  • Samsung Galaxy S20 Ultra with Good Charge Battery
  • Easy Jtag box with adapter
  • Micro USB Cable
  • Computer or Laptop

Samsung Galaxy S20 Ultra FRP Lock Using EasyJTAG Plus:

  • Remove the back panel of the device and connect the wire to the UFS ISP Pinout.
  • Next, connect the correct UFS ISP Pinout to the EasyJTAG Plus box
  • Check the “UFS” tab
  • Then Click on “Identify UFS Chip.
  • Connect your Samsung Galaxy S21 Ultra to the PC via a USB cable.
  • Go to Preset Select Persistent
  • Now Click on Erase LUN0 Data
  • Done.
