Repair: Samsung Galaxy A52 5G Charging Problems | Charging Ways

0

If you encounter any problems such as Samsung Galaxy A52 5G Not charging problem solution Charging paused or slow charging, here we will give you suggestions on resolving this problem with your phone. For example, you will be unable to charge your phones using the phone’s direct USB chargers, the universal charger usage becomes impossible when you use a phone powered by an inbuilt battery.

The features of smartphones are developing rapidly. With the vast development, users are facing trouble with new smartphones. Smartphone companies are struggling hard to promote phone features. Although, they forgot to enhance the features which have become a basic need for a smartphone user. As a result, the users are facing trouble with some of the essential features like battery draining.

Samsung smartphones are famous for their brand value, but we all know that the device is trouble at some point. Those frequent software updates often hang the smartphone and consume more battery power. We cannot deny that not only Samsung but all Android smartphones have some glitches. Fortunately, Android is a user-friendly platform that allows users to handle problems efficiently. With the help of Android’s customized feature, we can fix the minor glitches.

Battery charging problems can include the phone not taking power at all, phone not switching on after complete discharge despite plugging the charger. Some users complain that the smartphone gets 100 percent charged in just a few minutes and drains quickly. If you are here, then you must be frustrated with the Samsung battery not charging issue. However, you must know why the problem occurred before jumping with the troubleshooting steps.

Read More:-  Samsung Galaxy J3 J320H Power Button Ways On-Off Key Jumper

Hardware Reasons for Samsung Galaxy A52 5G Charging Problem

There are four basic hardware-related reasons that your Samsung Galaxy A52 could be charging slowly, and I will explain each of them in turn and in order of increasing probability. The issue could be:

  • The phone can be damaged by water.
  • Dust particles may be present in the charging connector.
  • Your charger may be defective.
  • The connection to the phone may have been lost.
  • The phone has been physically damaged.
  • One of the capacitors may be defective.
  • The charging IC may be faulty.

Samsung Galaxy A52 5G Charging Ways – Not Charging Problem Solution

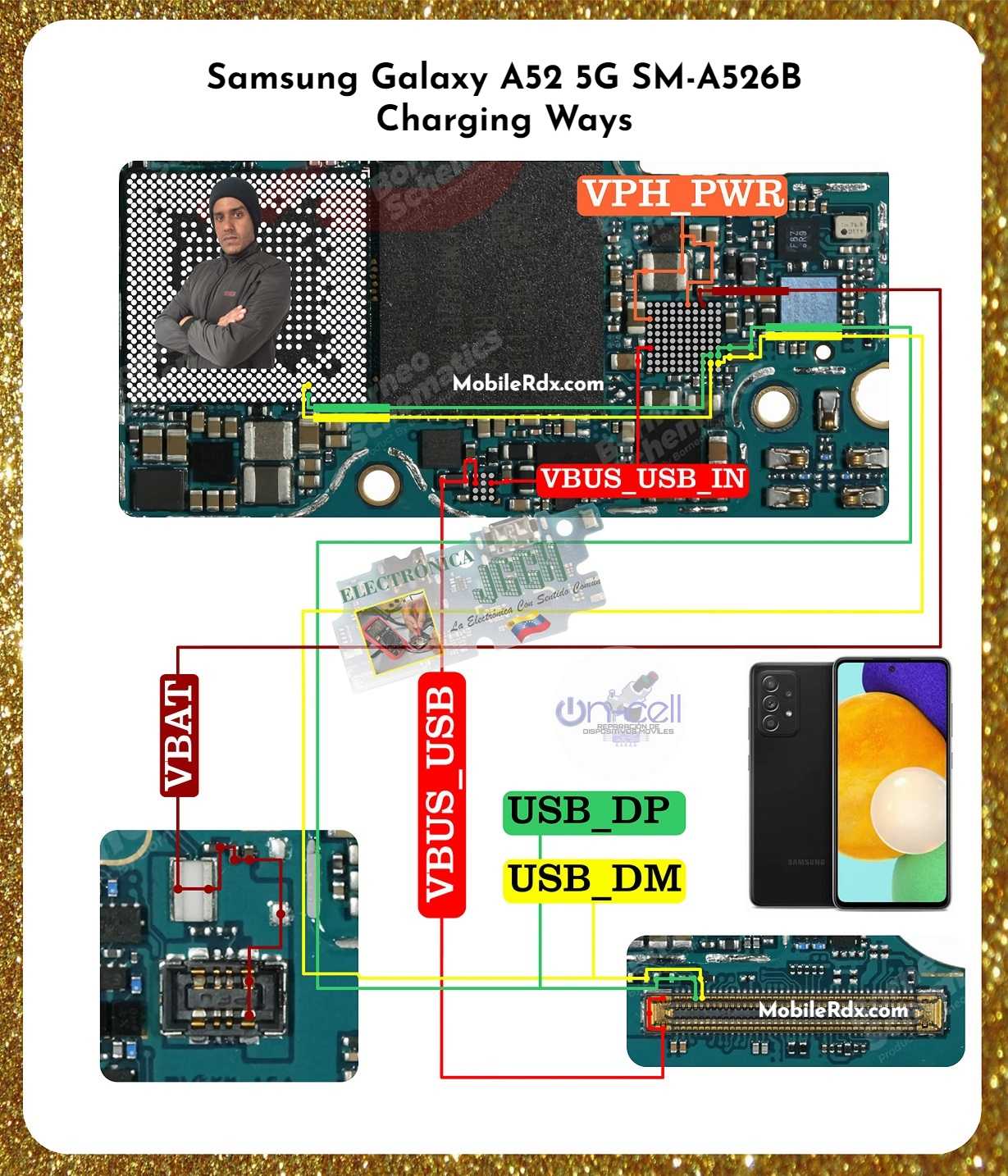

In the below image we draw the Samsung Galaxy A52 5G  SM-A526B charging ways and its jumper check continuity using a multimeter if any track damage makes a jumper on the Samsung Galaxy A52 5G motherboard.

Repair  Samsung Galaxy A52 5G Charging Problems   Charging Ways

  1. First, open the mobile
  2. Then clean the section of the charging connector of the mobile motherboard
  3. Then remove the old charging connector and add a new connector

Here Are Some Steps to Repair Samsung Galaxy A52 5G Charging Problem:

1. Check The USB Charging Port

Cause no charging damage to the Samsung Galaxy A52 5G can be caused by the destruction of the USB port corrosion.
Corrosion can be caused by water spills so that the pin of the port charging is damaged and the voltage transfer line is disconnected.
So that the line is disconnected and the voltage can not flow and drain and saved to the battery of the phone. Change the charging USB port immediately, if it is damaged and causes no charger problems on the phone.

2. Check Components And Lines

Perform a line check on the board if there is damage or disconnected lines, apply the way jumper on the PCB board. And also do an inspection of components that can cause no charging damage occurs, make changes to the component.

On the diagram image listed above, there is a component that has a malfunction of Samsung Galaxy A52 5G no charging phone. Then for his best move immediately replace the defective component with a replacement component with good condition.

Read More:-  Samsung Galaxy Pocket S5300 Network Problem Jumper Solution

But if you do not have a replacement component, then it can do away jumper only on the component that suffered the damage.
By doing some of these ways can fix Samsung Galaxy A52 not charging, make sure you do the damage inspection carefully. Use the Multimeter tool to measure conditions on each component and path on a damaged PCB board.

That’s some way to fix the Samsung Galaxy A52 5G charging because it’s a problem of damage like this very often happens. For more information and new tips and tricks on the solution to the problem of other Android phones. Continue to visit this page. We will update it if there is a new update.
